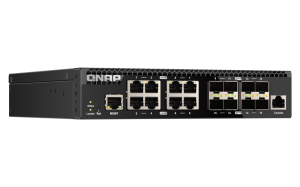

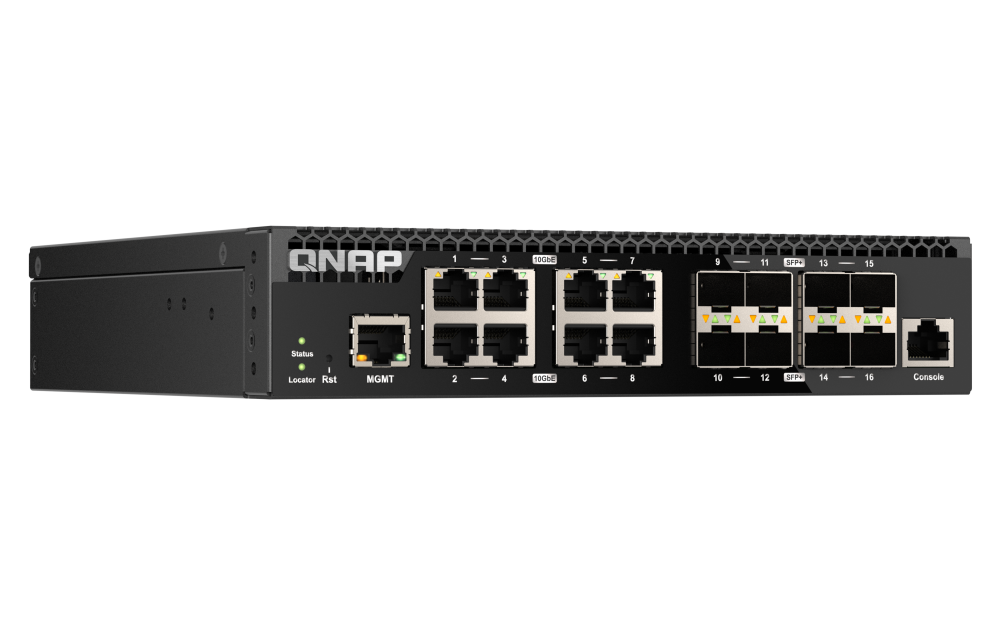

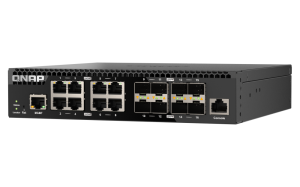

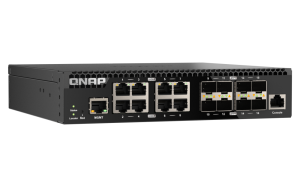

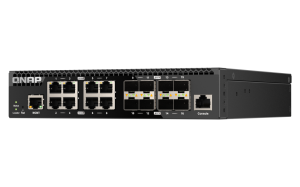

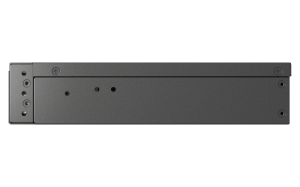

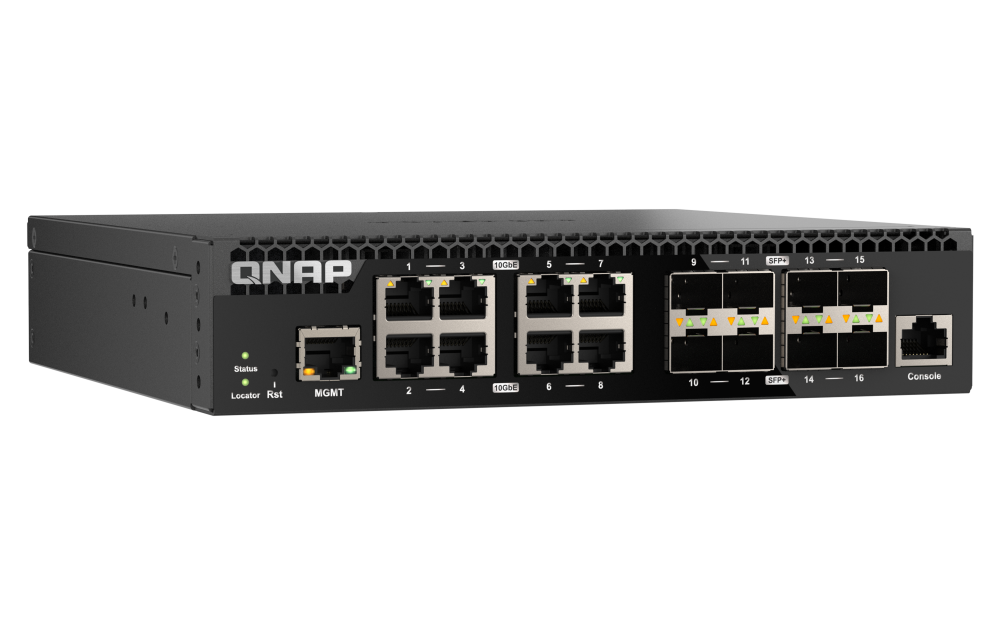

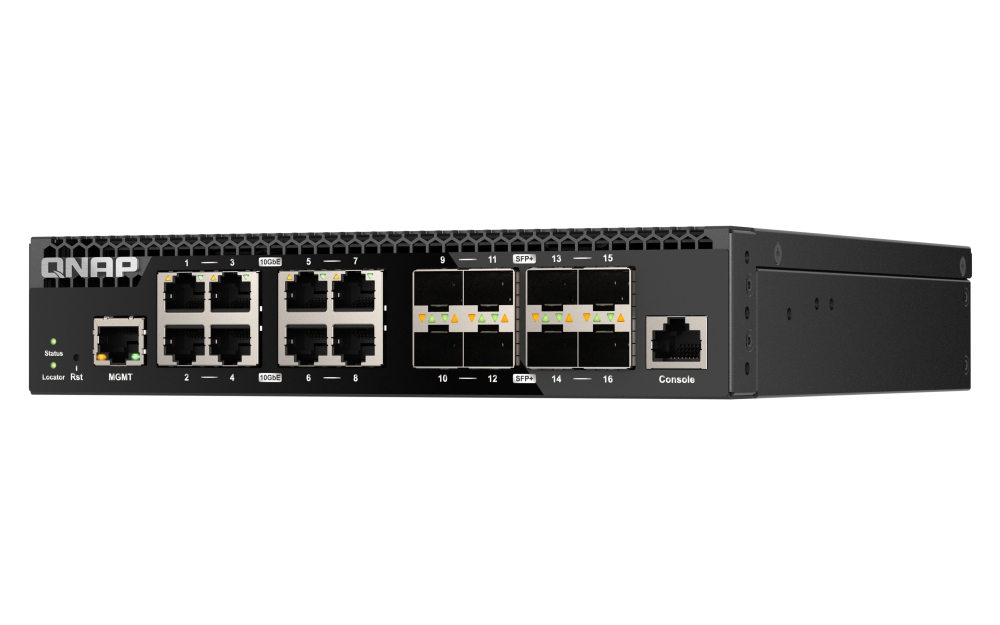

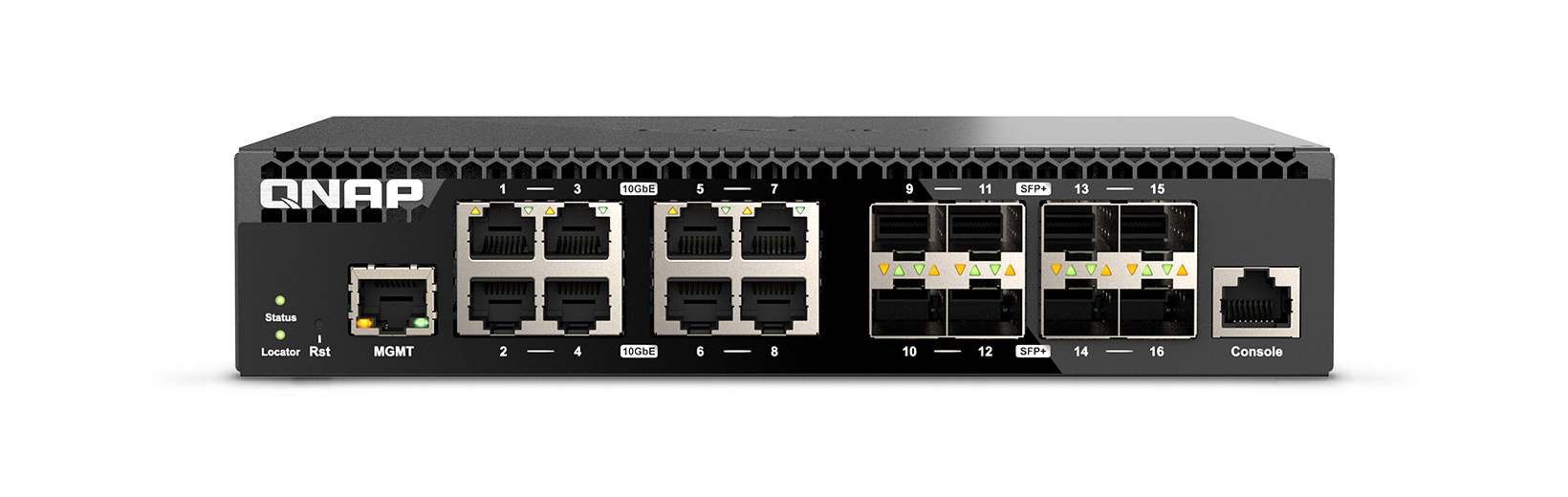

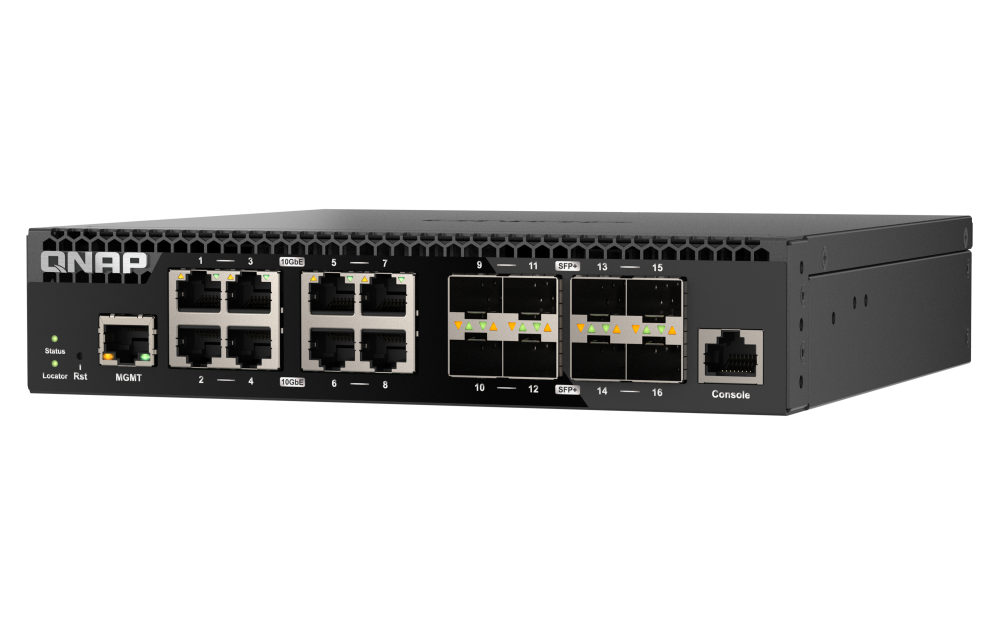

QNAP QSW-M3216R-8S8T network switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black

Roll over image to zoom inClick to Open expanded view

QNAP QSW-M3216R-8S8T network switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black

Name: QNAP QSW-M3216R-8S8T network switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Brand: QNAP
SKU: QSW-M3216R-8S8T

SKU: QSW-M3216R-8S8T

ETA 10 days

QNAP QSW-M3216R-8S8T, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Product manual (Download)

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

Drive
Without Drives

SKU
QSW-M3216R-8S8T

EAN
4711103084311

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Switching capacity
320 Gbit/s

Throughput
160 Gbit/s

Design

Form factor
1U

Product colour
Black

Rack mounting
Yes

Management features

Switch layer
L2/L3

Switch type
Managed

Network

10G support
Yes

Flow control support
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Ports & interfaces

Console port
RJ-45

Installed SFP modules quantity
0

Installed SFP+ modules quantity
8

Switch Number of Ports
8

Switch Port Speed
10G Ethernet (100/1000/10000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
48.632 W

Power source
AC

Security

Access Control List (ACL)
Yes

Weight & dimensions

Depth
199.5 mm

Height
43.3 mm

Weight
1.52 kg

Width
207 mm

Description

QNAP QSW-M3216R-8S8T. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U

Managed L2/L3
Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
10G support
MAC address table: 16000 entries Switching capacity: 320 Gbit/s
Access Control List (ACL)
1U Rack mounting
AC
