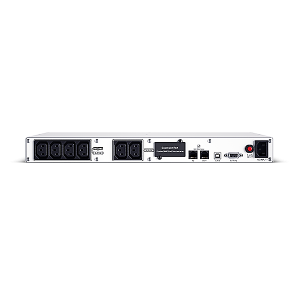

CyberPower OR1500ERM1U uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 6 AC outlet(s)

Roll over image to zoom inClick to Open expanded view

CyberPower OR1500ERM1U uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 6 AC outlet(s)

Name: CyberPower OR1500ERM1U uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 6 AC outlet(s)
Brand: CyberPower
SKU: OR1000ERM1U

SKU: OR1000ERM1U

4 In Stock

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	4	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

CyberPower OR1500ERM1U, Line-Interactive, 1.5 kVA, 900 W, Sine, 165 V, 271 V

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
CyberPower

Warranty
2 Years

SKU
OR1000ERM1U

EAN
4712856274288

Battery

Battery recharge time
8 h

Battery technology
Sealed Lead Acid (VRLA)

Hot-swap battery
Yes

Number of batteries supported
1

Typical backup time at full load
2.5 min

Typical backup time at half load
11 min

Bullet points

Design

Cable length
1.83 m

Certification
CE, EAC, RCM

Display type
LCD

Form factor
Rackmount

Housing material
Metal

LED indicators
Operation

Product colour
Silver

Rack capacity
1U

Features

Audible alarm modes
Fault, Low battery alarm, Overload alarm

Audible alarm(s)
Yes

Automatic Voltage Regulation (AVR)
Yes

Country of origin
China

EMI/RFI noise filtering
Yes

Input frequency
50/60 Hz

Input operation voltage (max)
271 V

Input operation voltage (min)
165 V

Output frequency
50/60 Hz

Output operation voltage (max)
230 V

Output operation voltage (min)
230 V

Output power
900 W

Output power capacity
1.5 kVA

Power factor
0.6

Power protection features
Overload

Response time
4 ms

Surge energy rating
810 J

Surge protection
Yes

UPS topology
Line-Interactive

Waveform
Sine

Logistics data

Harmonized System (HS) code
8504408590

Operational conditions

Non-operating altitude
0 - 15000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-15 - 45 °C

Packaging data

Cables included
USB cable

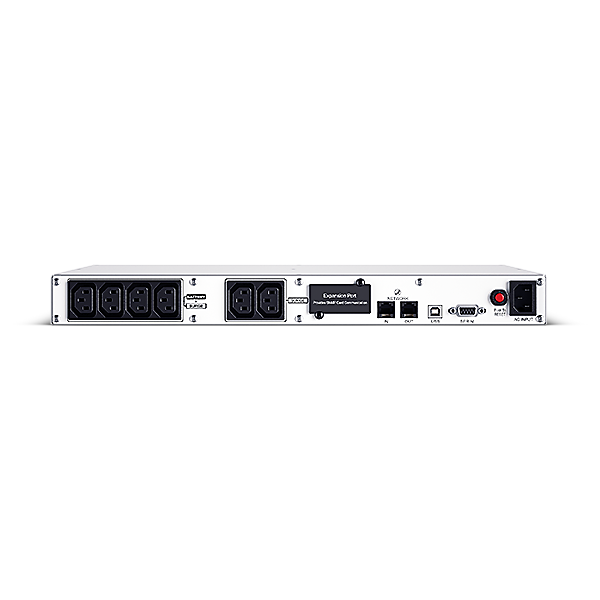

Ports & interfaces

AC outlet types
C13 coupler

AC outlets quantity
6 AC outlet(s)

Ethernet LAN (RJ-45) ports
1

Modem (RJ-11) ports
1

Power plug
C14 coupler

Serial ports quantity
1

USB port
Yes

Technical details

Compliance certificates
RoHS

Weight & dimensions

Depth
389 mm

Height
44 mm

Package depth
515 mm

Package height
158 mm

Package weight
23.1 kg

Package width
545 mm

Weight
14.9 kg

Width
443 mm

Description

CyberPower OR1500ERM1U. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2.5 min, Typical backup time at half load: 11 min. Form factor: Rackmount, Product colour: Silver, Housing material: Metal. Width: 443 mm, Depth: 389 mm, Height: 44 mm

Line-Interactive
1.5 kVA 900 W
Waveform: Sine
6 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount Silver
Line-interactive UPS Topology
Energy Saving Technology
Simulated Sine Wave Output
Automatic Voltage Regulation (AVR)
Overload Protection
Hot-swappable Batteries
Surge and Spike Protection
EMI and RFI Filtration
Phone/Fax/Modem/DSL/Network Protection
LCD Status Display
USB Connectivity Port
PowerPanel® Management Software
SNMP/HTTP Remote Management Capability (Optional)
