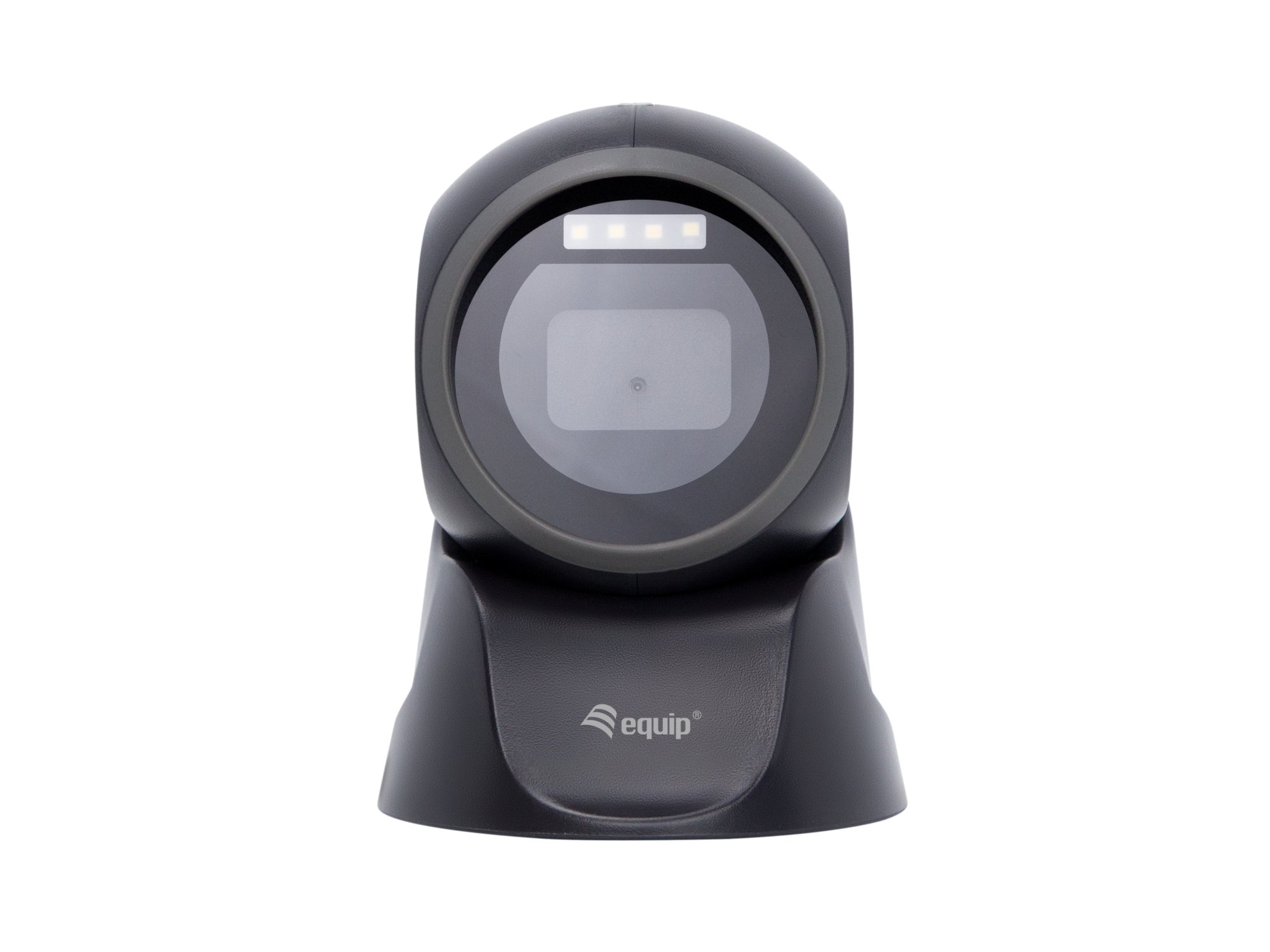

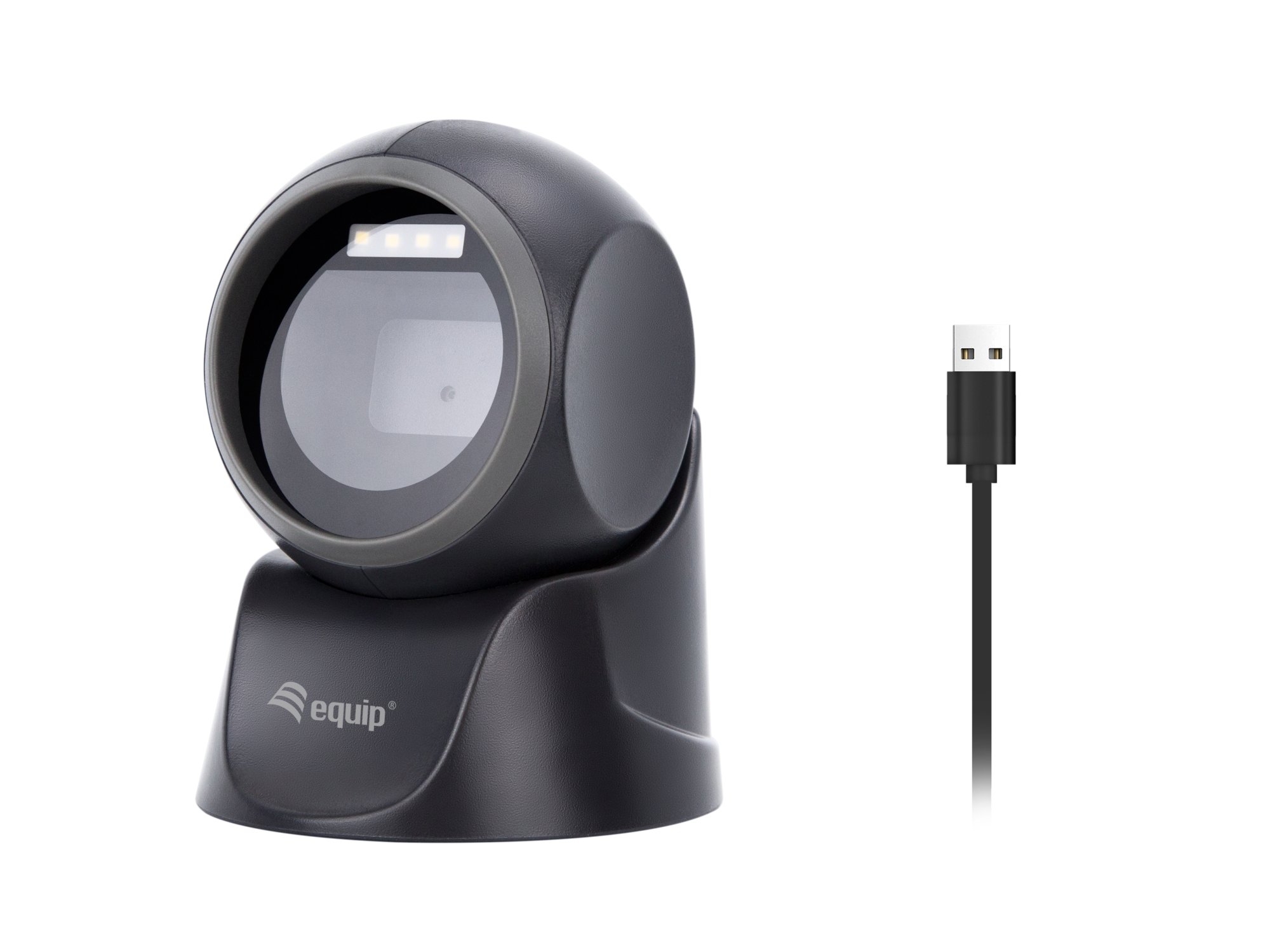

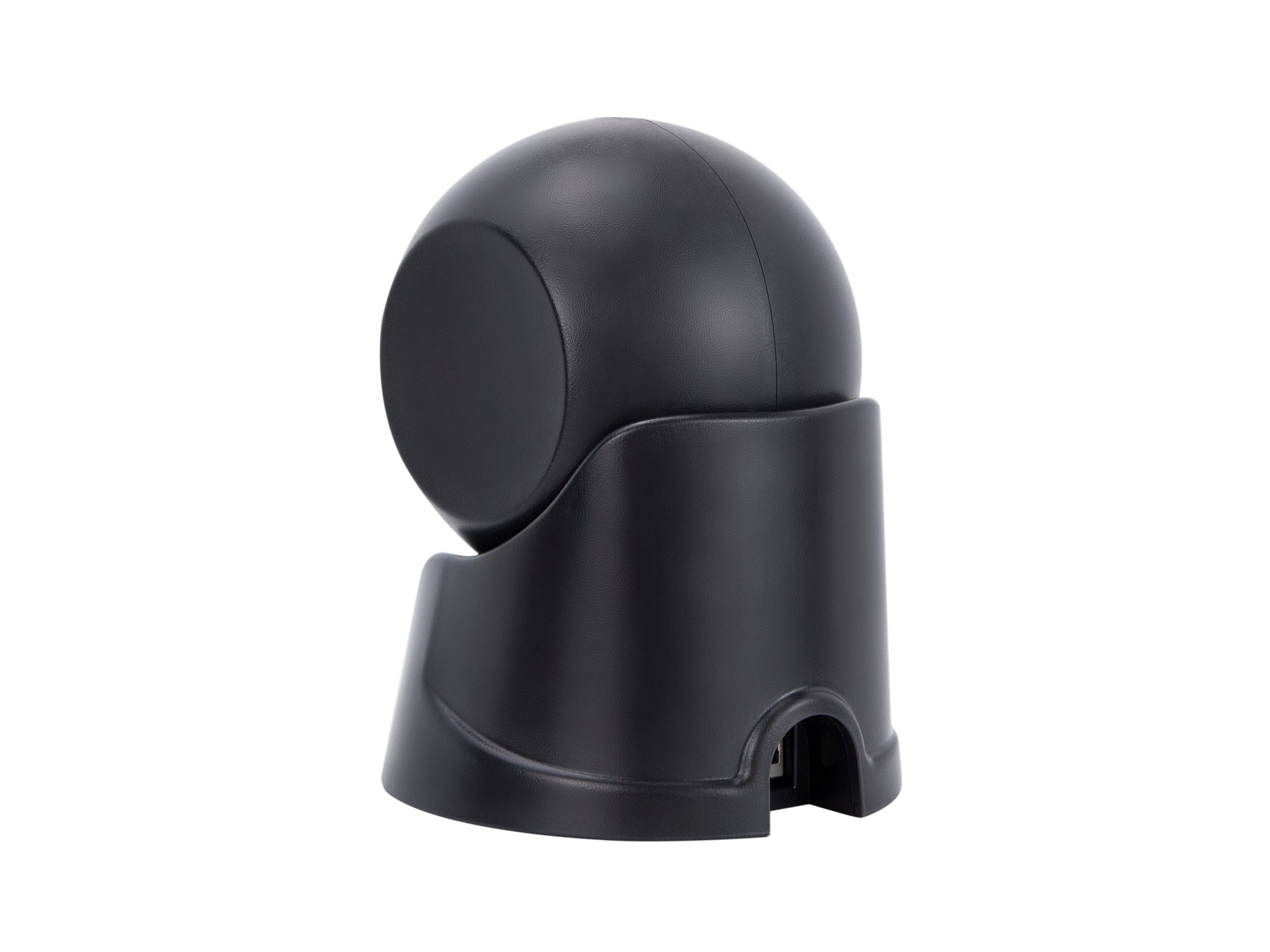

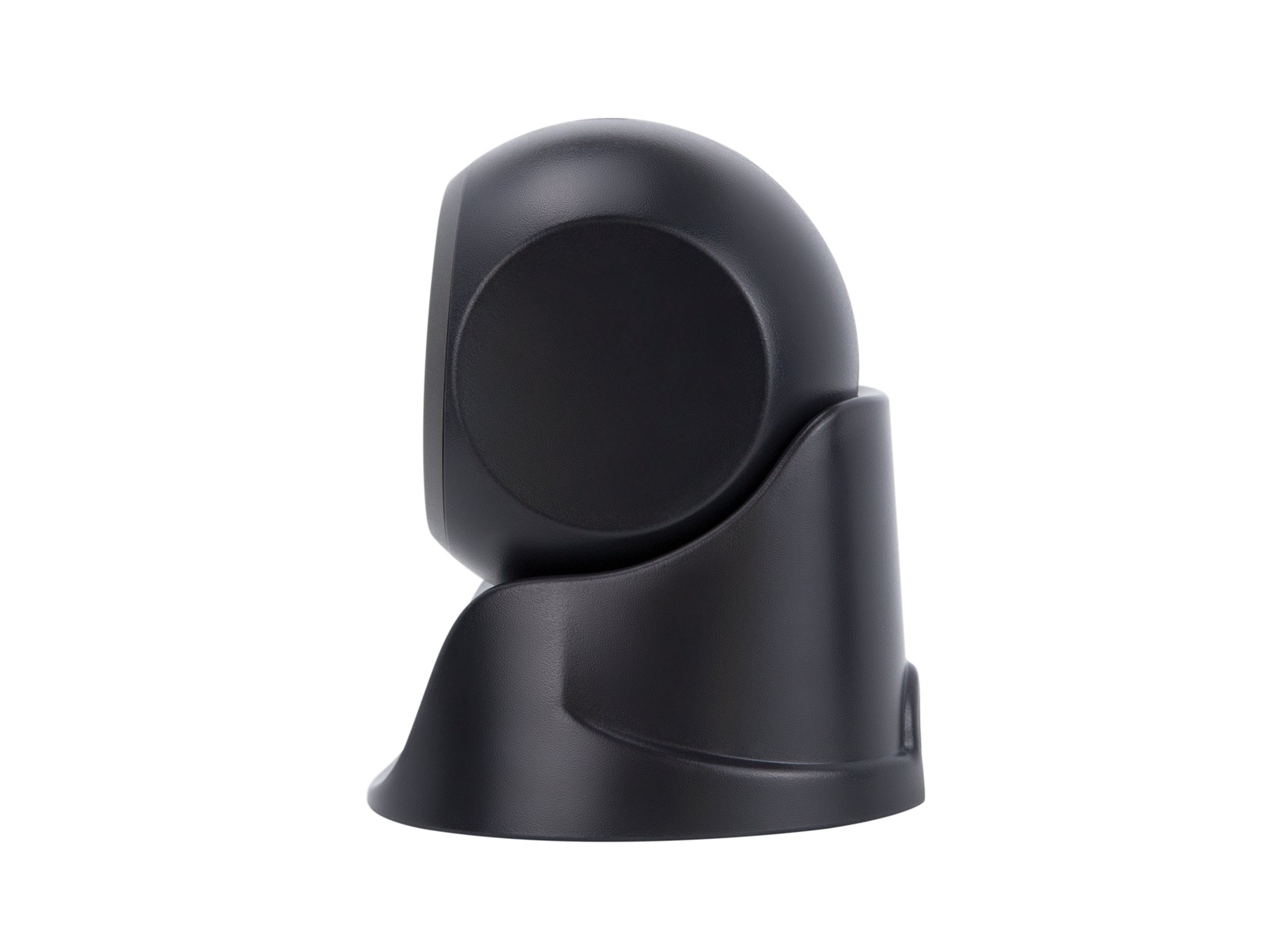

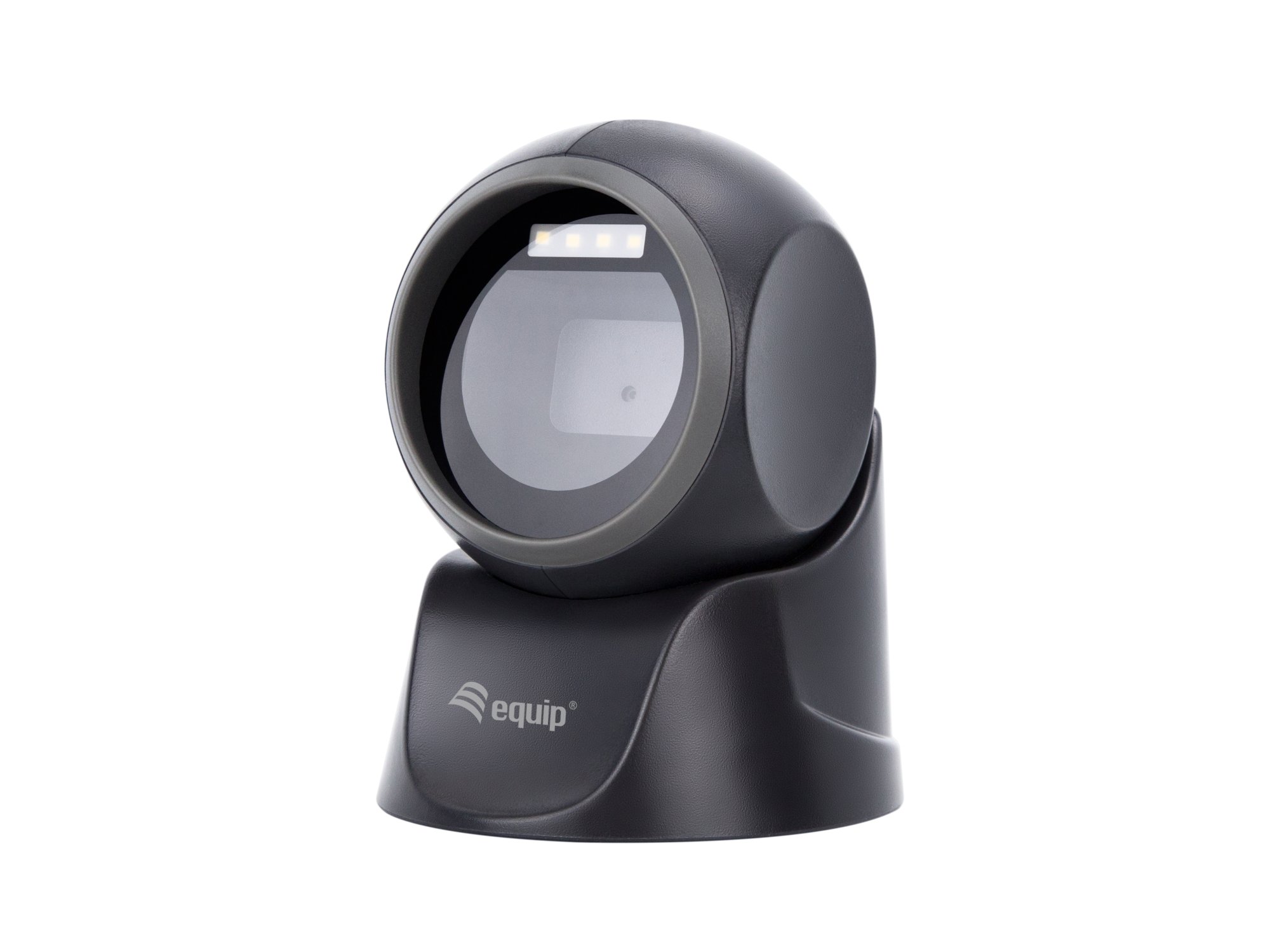

Equip USB 2D Omnidirectional Desktop Barcode Scanner

Roll over image to zoom inClick to Open expanded view

Equip USB 2D Omnidirectional Desktop Barcode Scanner

Name: Equip USB 2D Omnidirectional Desktop Barcode Scanner
Brand: LevelOne
SKU: 351027

SKU: 351027

ETA 7 days

Equip USB 2D Omnidirectional Desktop Barcode Scanner, Fixed bar code reader, 1D/2D, LED, AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ISBN, ISSN,..., PDF417, QR Code, Auto-induction, Continuous, Manual

Product manual (Download)

Declaration of Conformity (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
351027

EAN
4015867234303

Bullet points

Logistics data

Harmonized System (HS) code
8471900090

Master (outer) case gross weight
15 kg

Master (outer) case height
315 mm

Master (outer) case length
690 mm

Master (outer) case width
445 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 45 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Linux operating systems supported
Yes

Mobile operating systems supported
Android, iOS

Quick start guide
Yes

Packaging data

Package depth
210 mm

Package height
132 mm

Package weight
630 g

Package width
141 mm

Performance

Country of origin
China

Housing material
Acrylonitrile butadiene styrene (ABS)

International Protection (IP) code
IP54

Product colour
Black

Protection features
Drop proof, Water resistant

Ports & interfaces

Cable length
1.8 m

Connectivity technology
Wired

Standard interfaces
USB

Power

Power source type
USB

Scanning

2D (matrix & stacked) barcodes supported
PDF417, QR Code

Linear (1D) barcodes supported
AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Standard 2 of 5, UPC-A, UPC-E

Optical sensor resolution (W x H)
640 x 480 pixels

Read rate (max)
150 reads/s

Scanner resolution
1 cm

Scanner type
1D/2D

Sensor type
LED

Trigger mode
Auto-induction, Continuous, Manual

Type
Fixed bar code reader

Working distance
70 cm

Technical details

Compliance certificates
CE, RoHS

Sustainability compliance
Yes

Weight & dimensions

Depth
110 mm

Height
146 mm

Weight
295 g

Width
120 mm

Description

Equip USB 2D Omnidirectional Desktop Barcode Scanner. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.8 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: USB. Weight: 295 g, Width: 120 mm, Depth: 110 mm

Fixed bar code reader Acrylonitrile butadiene styrene (ABS) Black
Scanner type: 1D/2D Sensor type: LED
AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Standard 2 of 5, UPC-A, UPC-E PDF417, QR Code
640 x 480 pixels
Working distance: 70 cm
Wired Standard interfaces: USB
Power source type: USB
2D IMAGE Barcode Scanner Image Sensor: 640x480 CMOS
High-Resolution Imaging: Captures sharp and detailed images for accurate decoding.
Precise scanning of 1D & 2D barcodes ( barcodes & QR code )
Efficiently deciphers linear barcodes for retail and inventory management.
Durable Construction: Robust design to withstand daily use and potential drops.
Protected and water-resistant (IP54)
Wide Scan Range: Reads barcodes from various distances and angles.
Multiple Scanning Modes: Options for continuous, single, or presentation mode scanning.
Plug-and-play functionality for quick setup
Omnidirectional Scanning: Reads barcodes from any angle, reducing the need for precise alignment.
