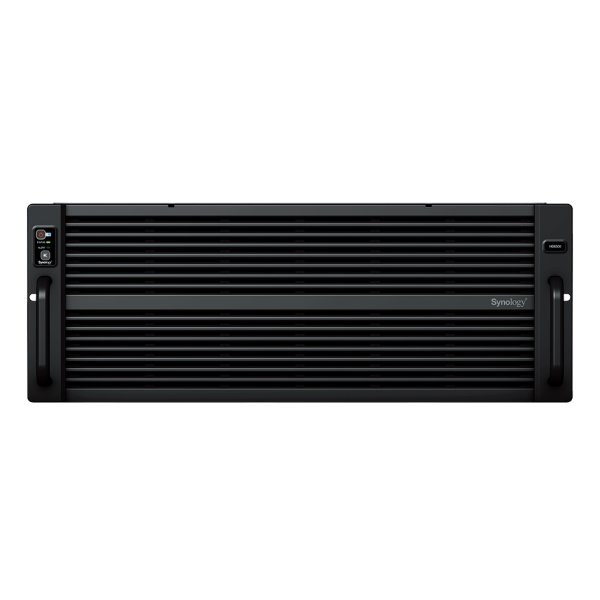

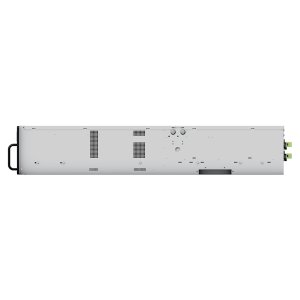

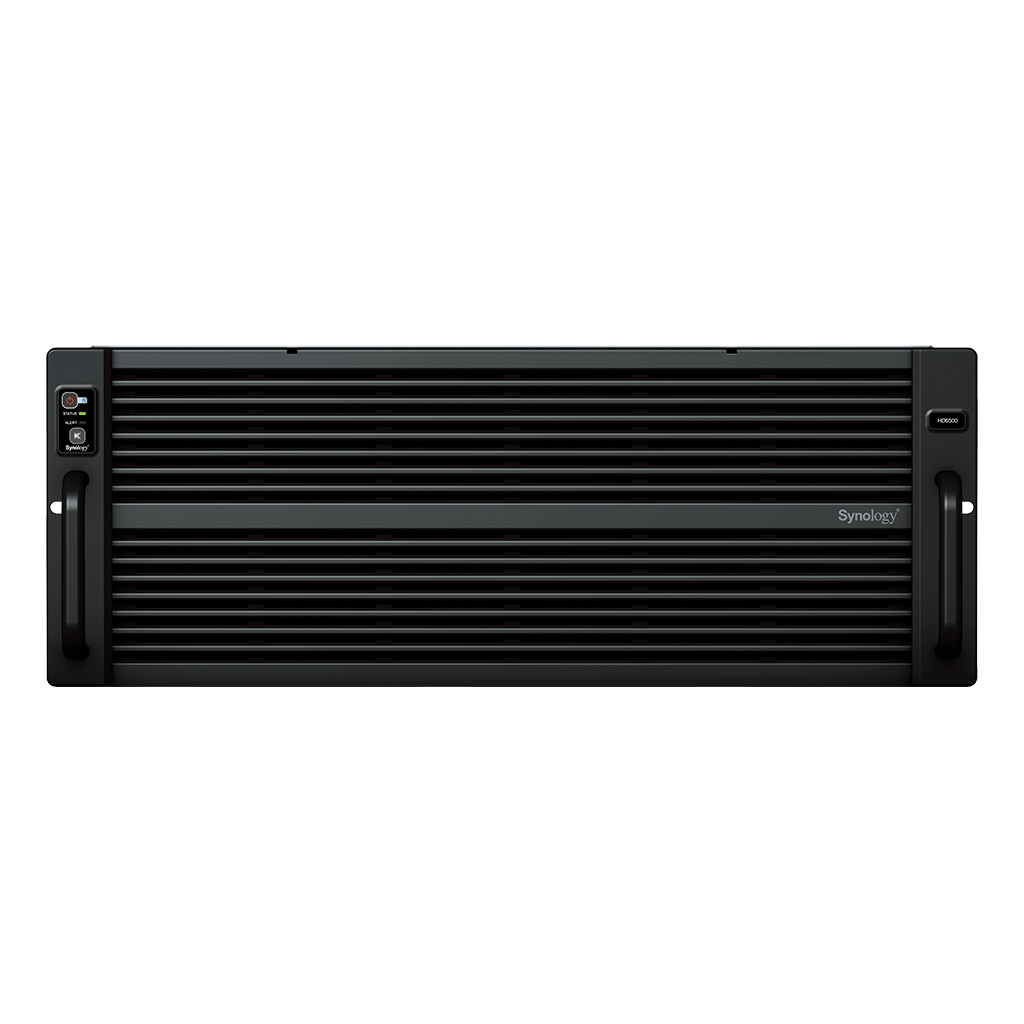

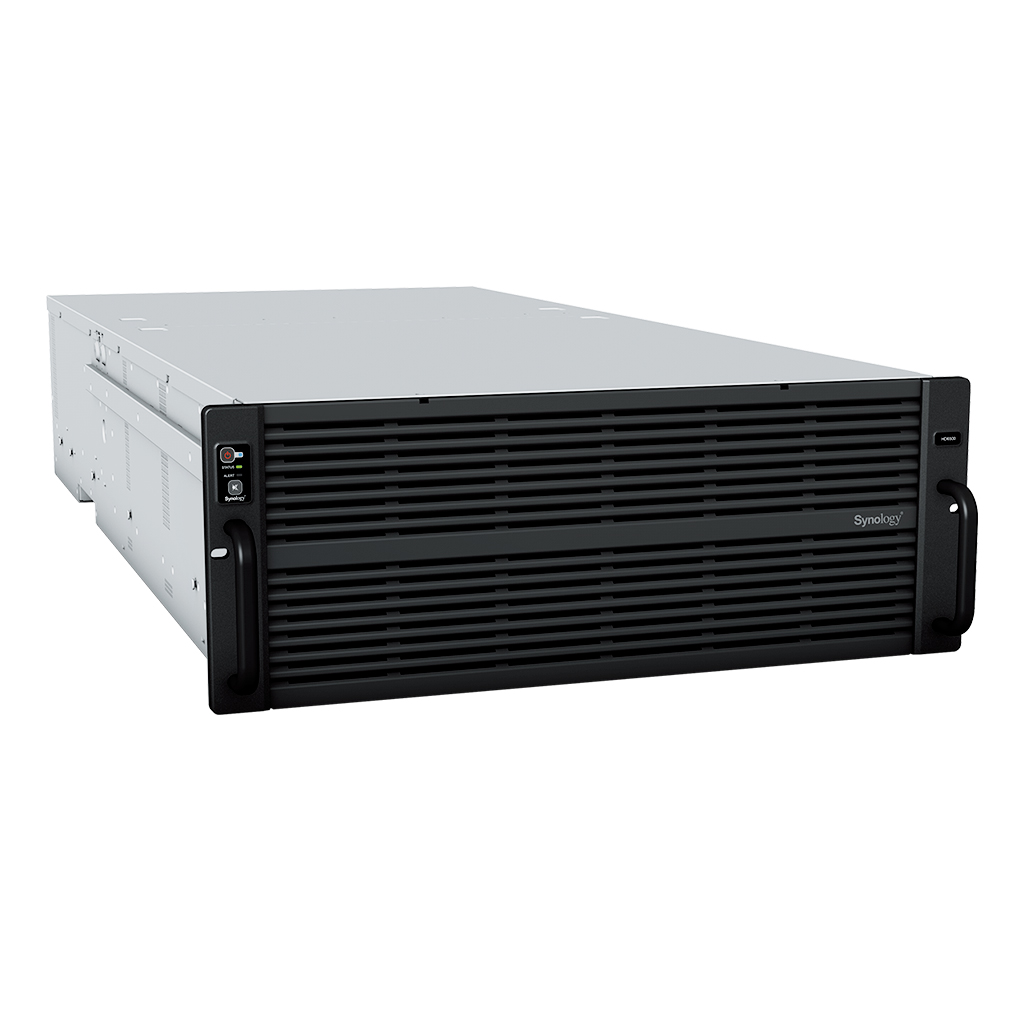

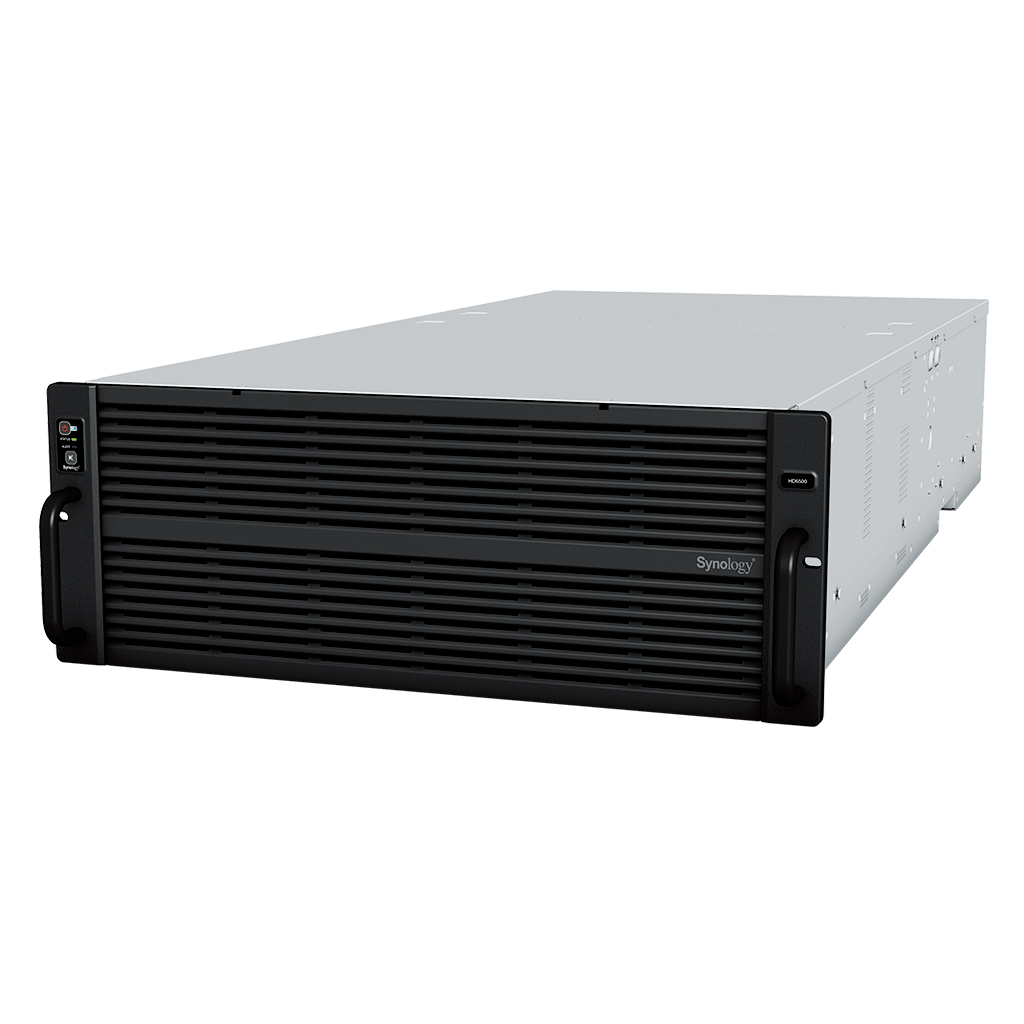

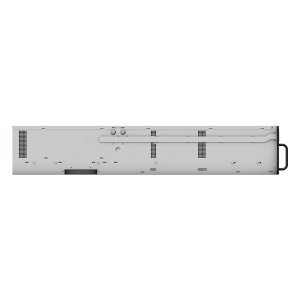

Synology HD6500/40X16TB-HAS53 NAS/storage server Rack (4U) Intel Xeon Silver 4210R 64 GB DDR4 Black

Roll over image to zoom inClick to Open expanded view

Synology HD6500/40X16TB-HAS53 NAS/storage server Rack (4U) Intel Xeon Silver 4210R 64 GB DDR4 Black

Name: Synology HD6500/40X16TB-HAS53 NAS/storage server Rack (4U) Intel Xeon Silver 4210R 64 GB DDR4 Black
Brand: Synology
SKU: HD6500/40X16TB-HAS53

SKU: HD6500/40X16TB-HAS53

ETA 10 days

Synology HD6500/40X16TB-HAS53, Storage server, Rack (4U), Intel Xeon Silver, 4210R, 64 GB, DDR4

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Synology

Warranty
5 Years

Drive
With drives

SKU
HD6500/40X16TB-HAS53

EAN
5050914228057

Design

Chassis type
Rack (4U)

Cooling type
Active

Fan diameter
8 cm

LED indicators
Yes

Number of fans
4 fan(s)

Product colour
Black

Memory

ECC
Yes

Internal memory type
DDR4

Maximum RAM supported
512 GB

Memory form factor
RDIMM

Memory Installed
64 GB

Network

Ethernet LAN
Yes

Ethernet LAN data rates
1000,10000 Mbit/s

iSCSI support
Yes

Supported network protocols
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
8 - 80%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 60 °C

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Built-in FTP server
Yes

Device class
Large Enterprise Business

Multilingual support
Yes

Number of users
16000 user(s)

Remotely operated
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Share folder access right management
Yes

Type
Storage server

Web-based management
Yes

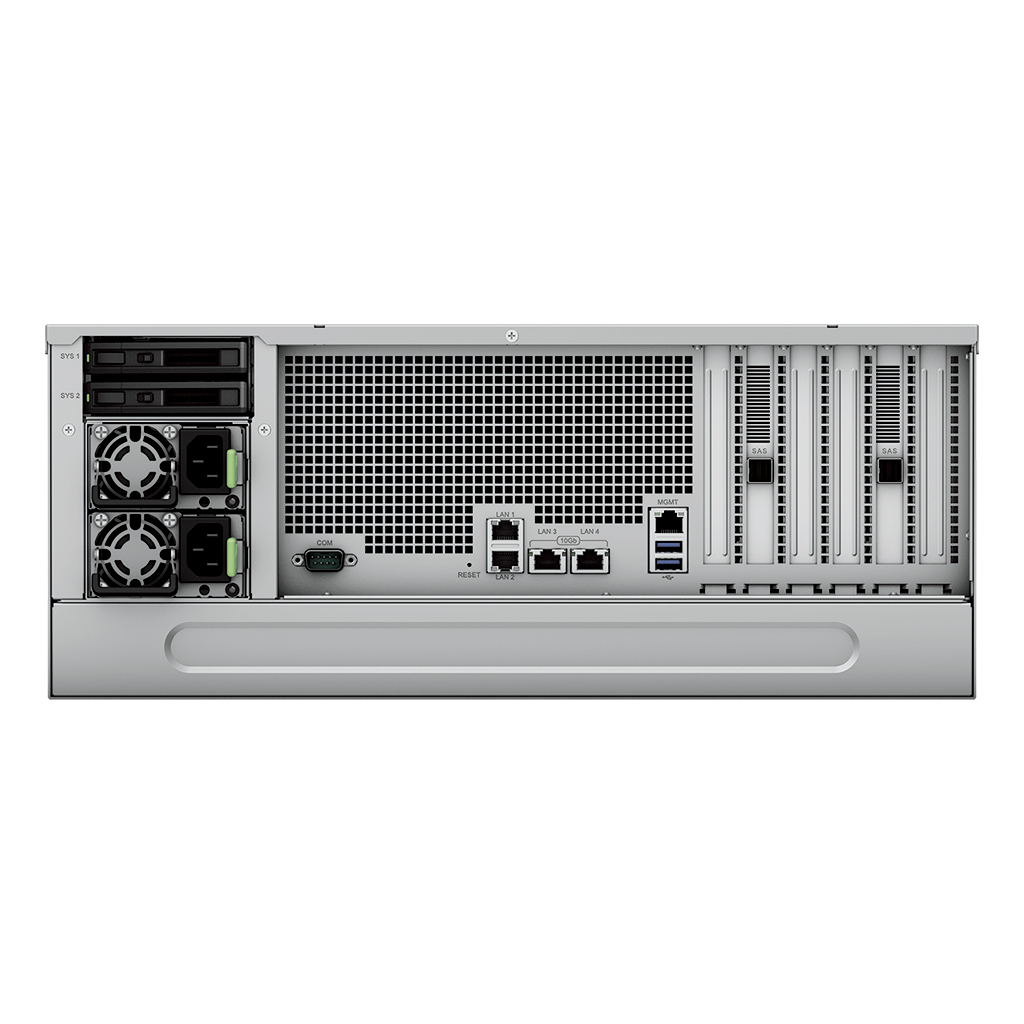

Ports & interfaces

Ethernet LAN (RJ-45) ports
5

External mini-SAS ports
2

PCI Express x16 (Gen 3.x) slots
2

PCI Express x8 (Gen 3.x) slots
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
200 - 240 V

Number of power supply units
2

Power supply location
Built-in

Redundant power supply (RPS) support
Yes

Processor

Number of Cores
10

Number of processors supported
2

Processor
4210R

Processor boost frequency
3.2 GHz

Processor cache
13.75 MB

Processor family
Intel Xeon Silver

Processor frequency
2.4 GHz

Processor manufacturer
Intel

Processor threads
20

Processor special features

Embedded options available
Yes

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Storage

Hot-swap drive bays
Yes

Installed storage drive type
No

Number of storage drives installed
0

Number of storage drives supported
60

Number of system drives installed
2

Number of system drives supported
2

RAID levels
0, 1, 5, 6, 10, JBOD

RAID support
Yes

Storage drive interface
Serial Attached SCSI (SAS)

Storage drive size
3.5"

Storage drive sizes supported
3.5"

Storage drives installed
No

Supported file systems
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial Attached SCSI (SAS)

Supported storage drive types
HDD & SSD

System drive capacity
480 GB

System drive type
SSD

Total installed system drives capacity
960 GB

Weight & dimensions

Depth
985 mm

Height
176 mm

Weight
37.9 kg

Width
438 mm

Description

Synology HD6500/40X16TB-HAS53. Type: Storage server. Chassis type: Rack (4U). Device class: Large Enterprise Business. Processor family: Intel Xeon Silver, Processor model: 4210R, Processor frequency: 2.4 GHz. Internal memory: 64 GB, Internal memory type: DDR4

Large Enterprise Business Storage server Rack (4U) Black
Number of storage drives supported: 60 HDD & SSD Serial Attached SCSI (SAS)
Intel Xeon Silver 4210R 2.4 GHz
64 DDR4 RDIMM ECC
Ethernet LAN iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN
