Kensington SmartFit One-Touch Height-Adjustable Single Monitor Arm

Roll over image to zoom inClick to Open expanded view

Kensington SmartFit One-Touch Height-Adjustable Single Monitor Arm

Name: Kensington SmartFit One-Touch Height-Adjustable Single Monitor Arm
Brand: Kensington
SKU: K55470EU

SKU: K55470EU

ETA 5 days

Kensington SmartFit One-Touch Height-Adjustable Single Monitor Arm, Clamp/Bolt-through, 9 kg, 33 cm (13"), 81.3 cm (32"), 100 x 100 mm, Grey, Silver

One Touch Adjustable Monitor Arm Flyer (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Kensington

Warranty
1 Year

SKU
K55470EU

EAN
5028252597128

Bullet points

Point
Cable management system keeps monitor cables organised for a tidier workspace

Easy to install with included quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range

Kensington durability meets ANSI/BIFMA performance and safety standards

Design

Housing material
Aluminium, Plastic, Steel

Product colour
Grey, Silver

Ergonomics

Angle of rotation
90°

Cable management
Yes

Height adjustment
Yes

Height adjustment range
170 - 505 mm

Pan range
-90 - 90°

Swivel angle range
-180 - 180°

Tilt angle range
-90 - 90°

Logistics data

Country of origin
China

Harmonized System (HS) code
85299097

Master (outer) case gross weight
17.8 kg

Master (outer) case height
479.6 mm

Master (outer) case length
514.4 mm

Master (outer) case width
333.5 mm

Products per master (outer) case
4 pc(s)

Mounting

Desk thickness (max)
8.5 cm

Desk thickness (min)
1 cm

Extension arm (max)
52.5 cm

Maximum screen size
81.3 cm (32")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
9 kg

Minimum screen size
33 cm (13")

Minimum VESA mount
75 x 75 mm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
1

Other features

Certification
Prop 65, BIFMA

Compliance certificates
RoHS

Packaging data

Package depth
315 mm

Package height
114.3 mm

Package type
Box

Package weight
4.22 kg

Package width
485.9 mm

Weight & dimensions

Depth
115 mm

Height
665 mm

Weight
3.34 kg

Width
590 mm

Description

Kensington SmartFit One-Touch Height-Adjustable Single Monitor Arm. Mounting: Clamp/Bolt-through, Maximum weight capacity: 9 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -180 - 180°, Tilt angle range: -90 - 90°. Product colour: Grey, Silver

Maximum weight capacity: 9 kg
Minimum screen size: 33 cm (13") Maximum screen size: 81.3 cm (32")
Number of displays supported: 1
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Height adjustment
Cable management
Aluminium, Plastic, Steel Grey, Silver
SmartFit™ supports proper ergonomic eye-level viewing angles, as well as improved neck and shoulder alignment.

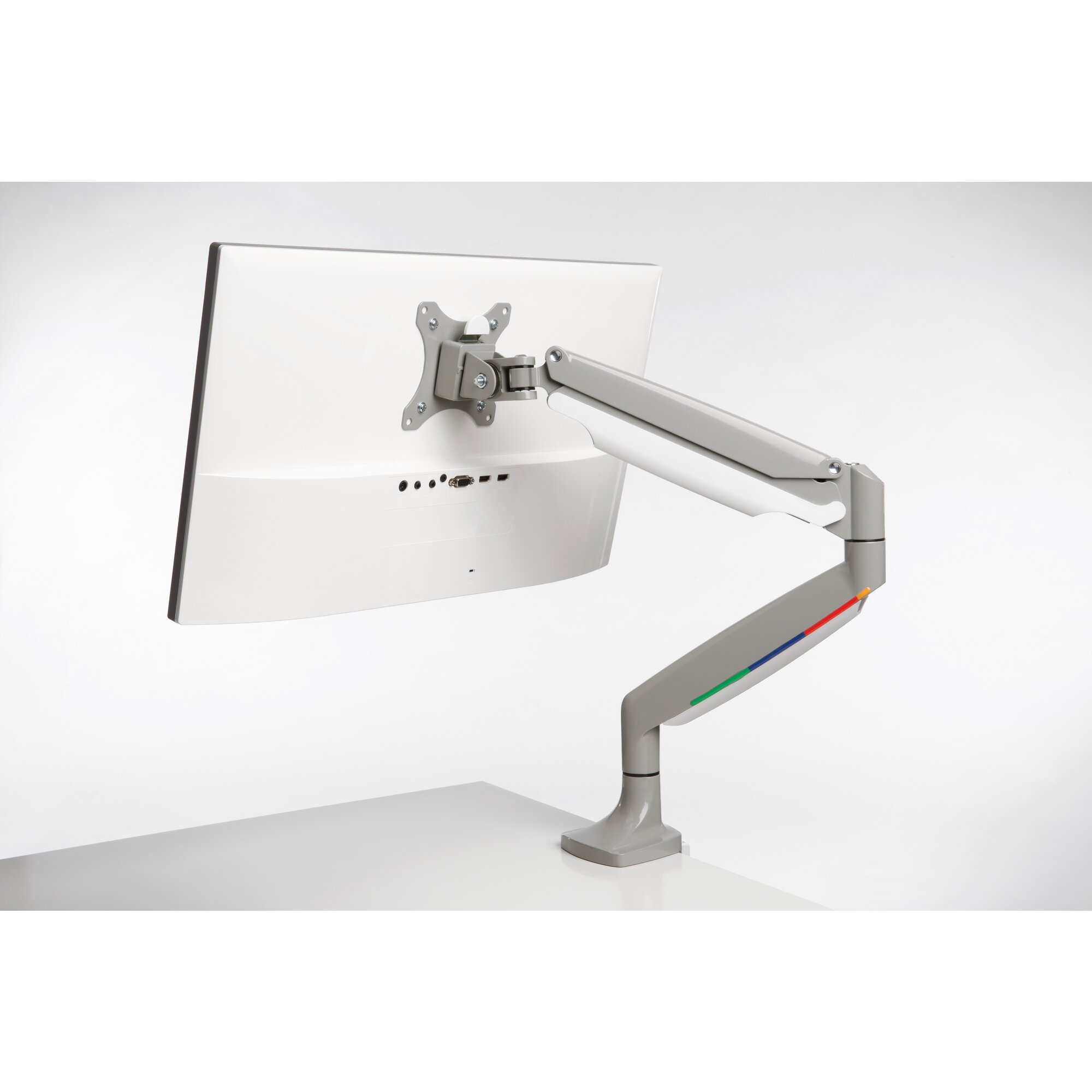

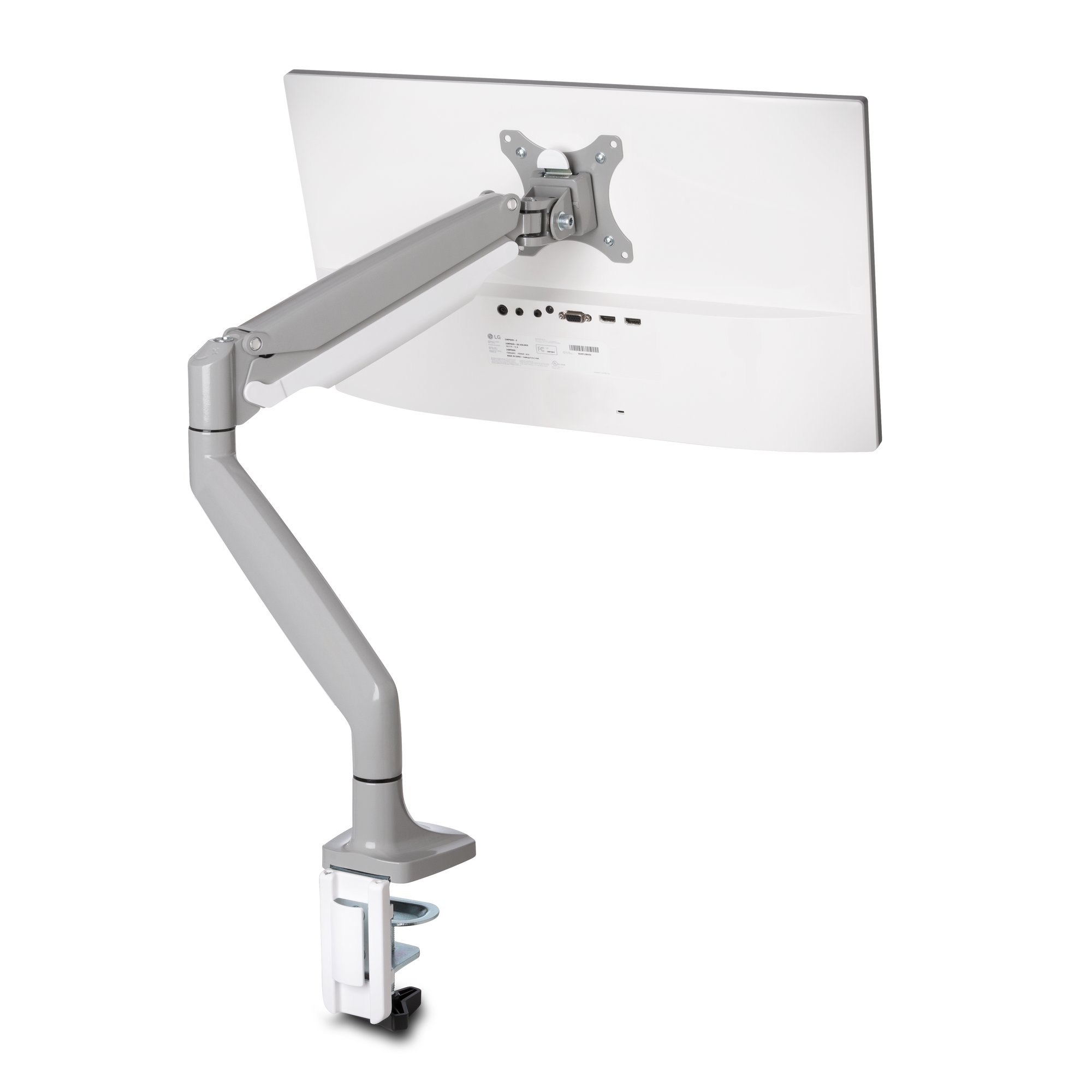

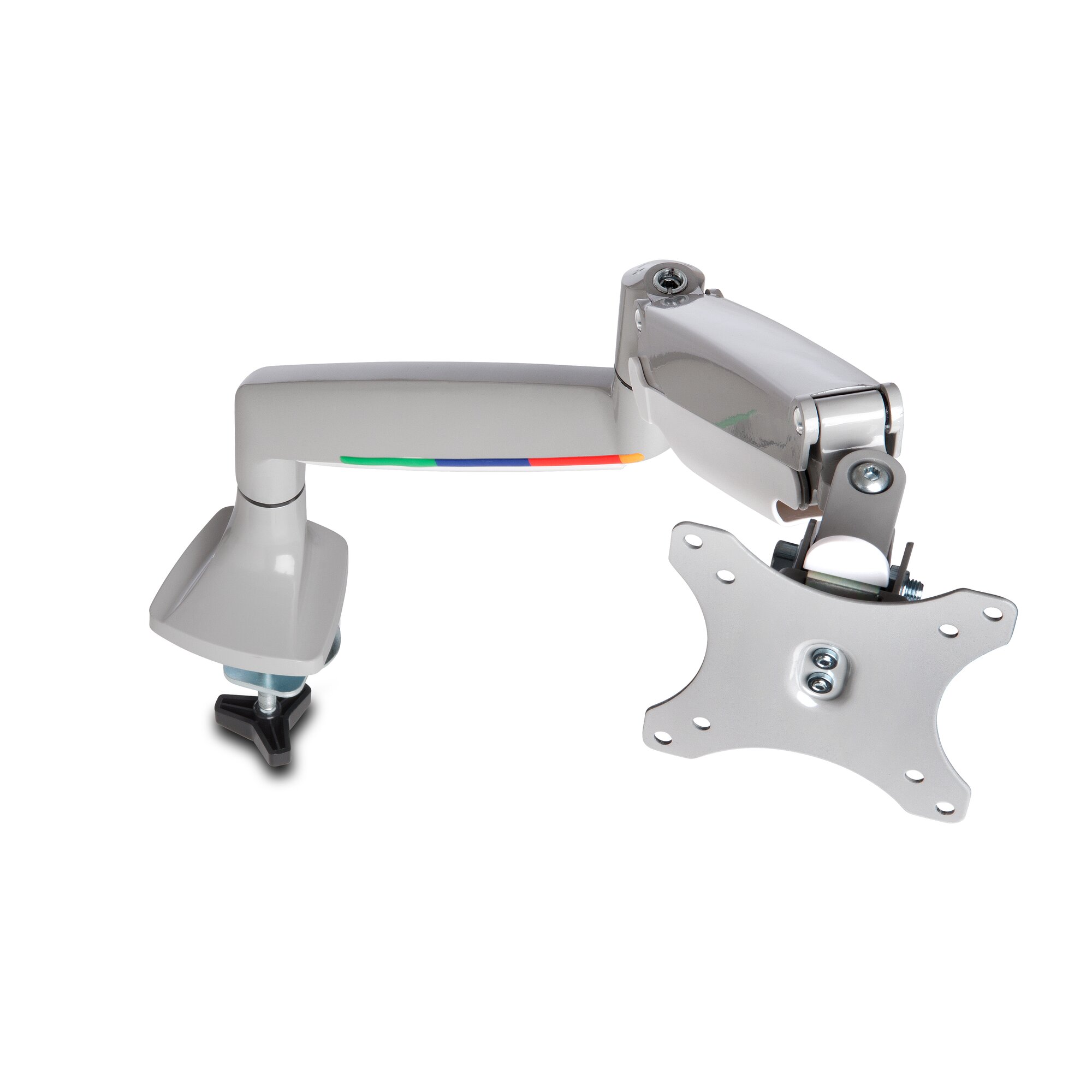

One-Touch Adjustable Arm with Built-In Gas Spring simplifies height adjustment (170 - 505mm, 6.7 - 19.9”), provides 180° swivel and monitor rotation, ±90° tilt adjustment and allows monitor to smoothly move up, down, forward and back for full motion articulation.
Stability focused design supports 13”-34” flat or curved monitors weighing up to 9kg (19.8lbs) and ensures monitor is stable and steady in any position

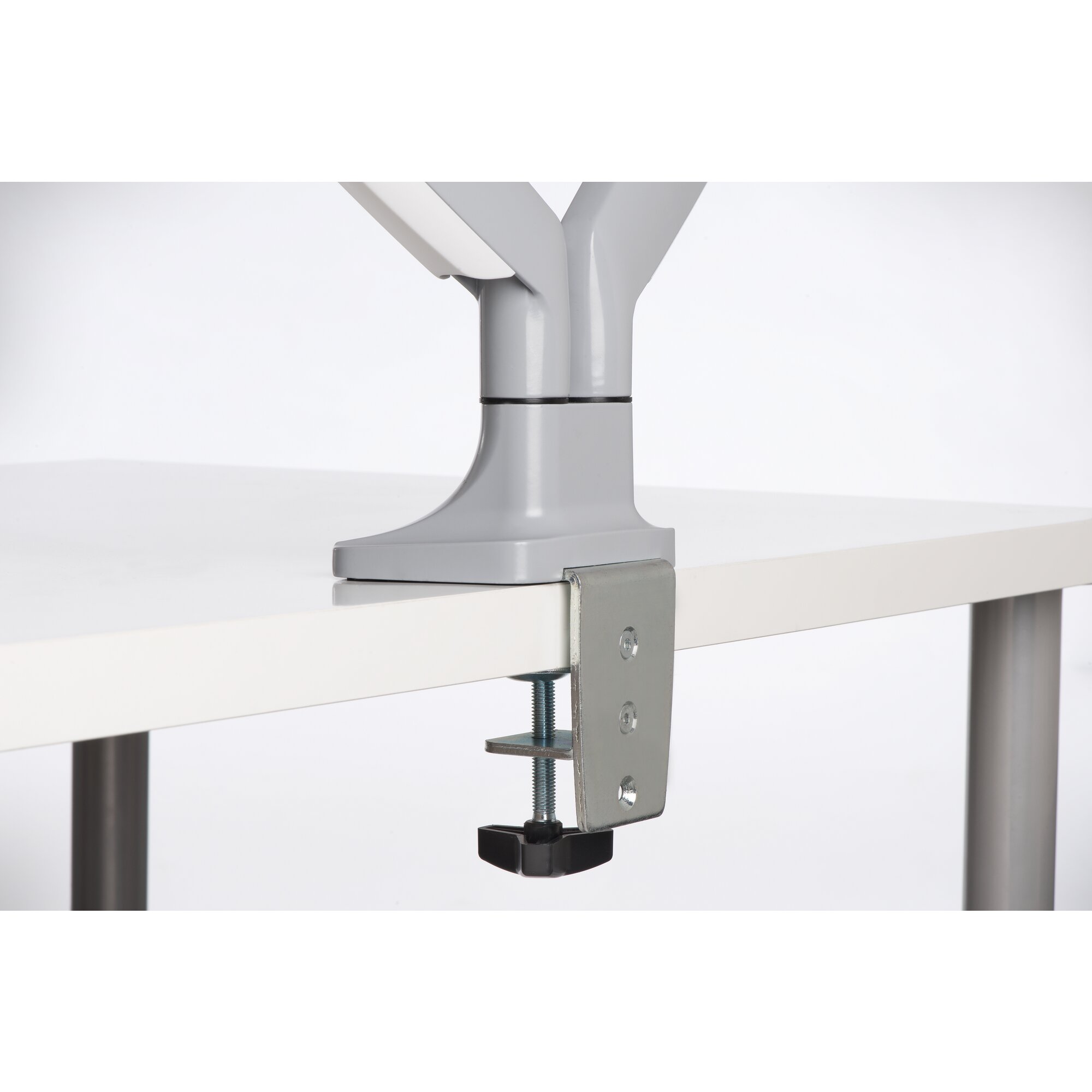

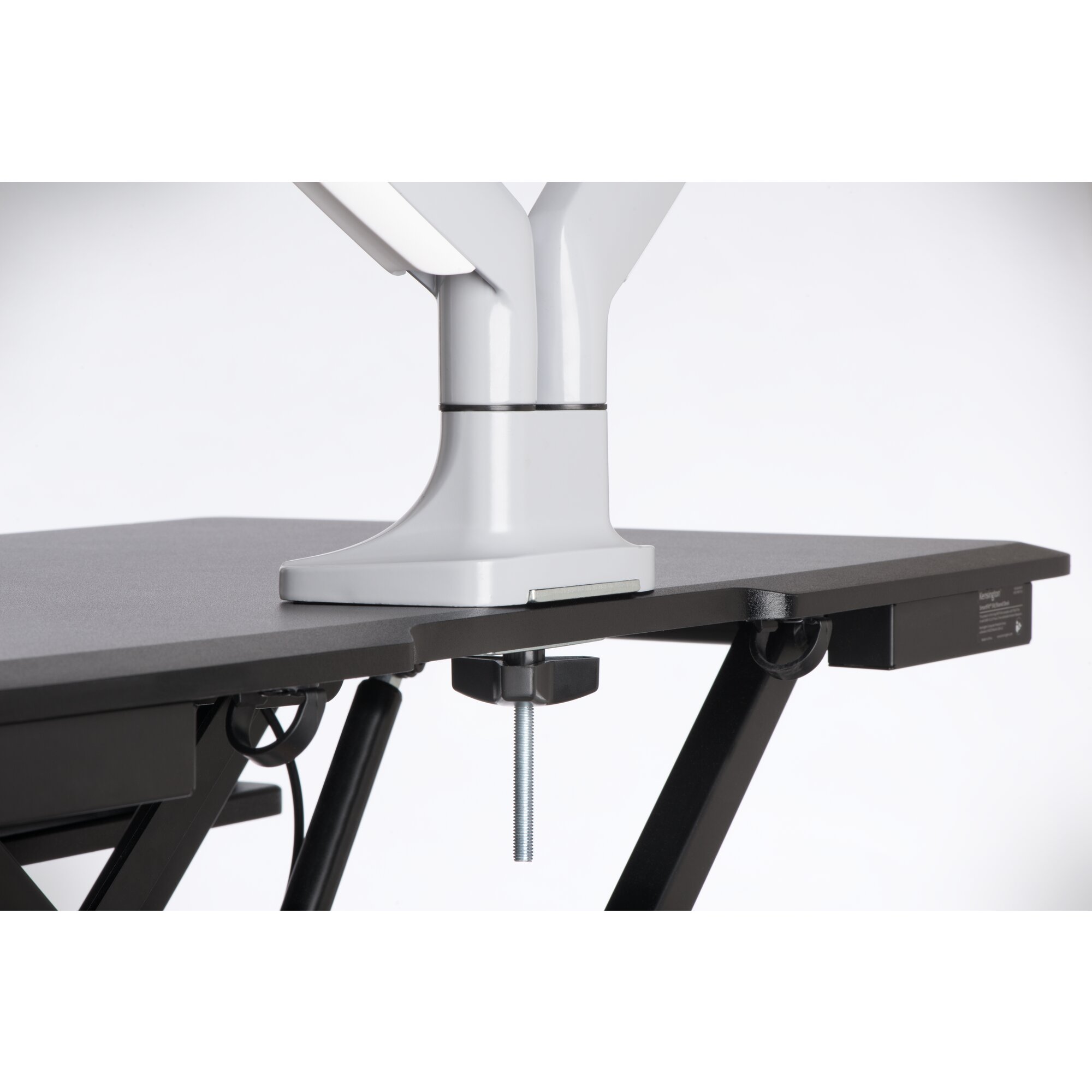

Easy to install with included quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range: 10-85mm and grommet (diameter range: 10.5-50mm) installation options and included tool kit to simplify removal

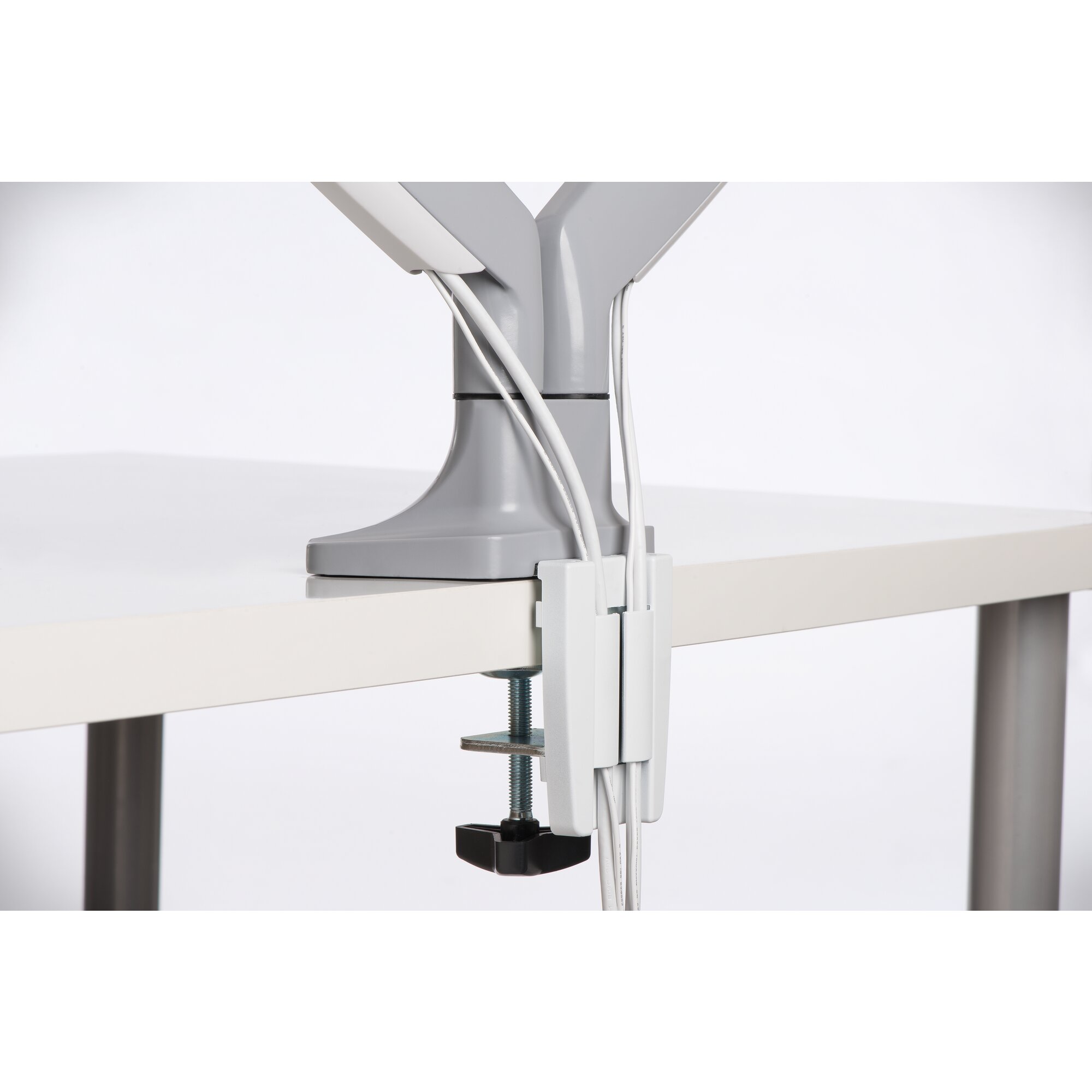

Cable management system keeps monitor cables organised for a tidier workspace
Kensington durability meets ANSI/BIFMA performance and safety standards
