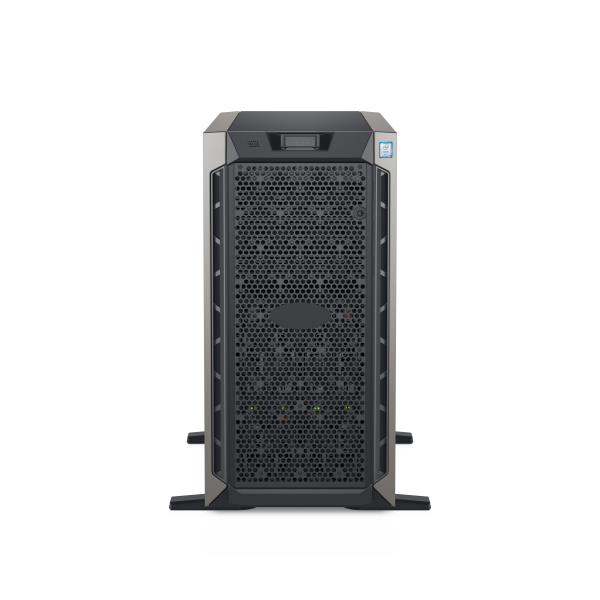

Name: Intel Xeon Silver 4210 (13.75MB Cache, 2.2GHz), 16GB DDR4-SDRAM (2666MT/s) RDIMM Dual Rank, 480GB SSD, DVD-RW, LAN, PERC H730P 2GB, iDRAC9 Enterprise, 495W, No OS
Brand: Dell
SKU: FY3VJ

Intel Xeon Silver 4210 (13.75MB Cache, 2.2GHz), 16GB DDR4-SDRAM (2666MT/s) RDIMM Dual Rank, 480GB SSD, DVD-RW, LAN, PERC H730P 2GB, iDRAC9 Enterprise, 495W, No OS

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Dell

Device type
Workstation

Bullet points

Design

Chassis type
Tower (5U)

Product colour
Black

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Graphics

On-board graphics card model
Not available

Memory

Buffered memory type
Registered (buffered)

Internal memory type
DDR4-SDRAM

Memory data transfer rate
2666 MT/s

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory ranking
2

Memory Slot Support
160 GB

Memory slots
16

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Operational conditions

Non-operating altitude
0 - 12000 m

Operating altitude
0 - 3048 m

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
10 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 65 °C

Packaging content

Cables included
AC

Performance

Remote administration
iDRAC9 Enterprise

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Serial ports quantity
1

USB 2.0 ports quantity
5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

VGA (D-Sub) ports quantity
1

Power

Power supply
495 W

Power supply input frequency
50 - 60 Hz

Redundant power supply (RPS) support
No

Processor

Embedded options available
Yes

Execute Disable Bit
Yes

Maximum internal memory supported by processor
1.02 TB

Maximum number of PCI Express lanes
48

Memory clock speeds supported by processor
2400 MHz

Memory types supported by processor
DDR4-SDRAM

Number of Cores
10

Number of processors installed
1

Processor
4210

Processor boost frequency
3.2 GHz

Processor cache
13.75 MB

Processor codename
Cascade Lake

Processor family
Intel Xeon Silver

Processor frequency
2.2 GHz

Processor generation
2nd Generation Intel® Xeon® Scalable

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
76.0 x 56.5 mm

Processor socket
LGA 3647 (Socket P)

Processor threads
20

Scalability
2S

Supported instruction sets
AVX-512

Tcase
78 °C

Thermal Design Power (TDP)
85 W

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
193384

Software

Compatible operating systems
- Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi

Operating system installed
No

Storage

Hot-Plug support
Yes

Number of HDDs supported
8

Number of SSDs installed
1

Optical drive type
DVD-RW

RAID support
No

SSD capacity
480 GB

SSD interface
SATA

Storage Capacity
480 GB

Supported HDD sizes
3.5"

Supported RAID controllers
PERC H730P 2GB

Supported storage drive interfaces
SAS, Serial ATA

Weight & dimensions

Depth
573.6 mm

Height
443.3 mm

Package depth
616 mm

Package height
454 mm

Package weight
33.2 kg

Package width
789 mm

Width
218 mm

Memory

Internal memory type
DDR4-SDRAM

Memory Installed
16 GB

Memory Slot Support
160 GB

Memory slots
16

Processor

Processor
4210

Processor generation
2nd Generation Intel® Xeon® Scalable
