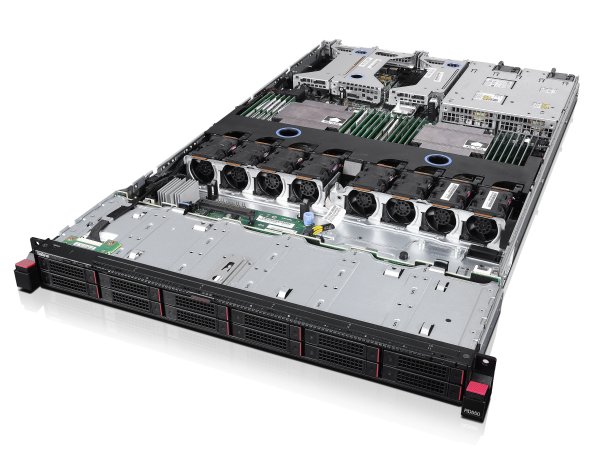

• Design

• Chassis type
• Rack (1U)

• Redundant fans support
• Yes

• Expansion slots

• PCI Express slots version
• 3.0

• PCI Express x16 (Gen 3.x) slots
• 1

• PCI Express x8 (Gen 3.x) slots
• 2

• Filters

• Machinecategory
• Server

• Graphics

• Maximum graphics card memory
• 16 MB

• On-board graphics card
• Yes

• Memory

• Buffered memory type
• Registered (buffered)

• ECC
• Yes

• Internal memory type
• DDR4-SDRAM

• Memory clock speed
• 2133 MHz

• Memory Installed
• 16 GB

• Memory layout (slots x size)
• 1 x 16 GB

• Memory Slot Support
• 768 GB

• Memory slots
• 24x DIMM

• Network

• Cabling technology
• 10/100/1000Base-T(X)

• Ethernet interface type
• Gigabit Ethernet

• Ethernet LAN
• Yes

• Operational conditions

• Operating altitude
• 0 - 3048 m

• Operating relative humidity (H-H)
• 20 - 80%

• Operating temperature (T-T)
• 10 - 45 °C

• Storage relative humidity (H-H)
• 8 - 90%

• Storage temperature (T-T)
• -10 - 60 °C

• Other features

• Graphics card
• AST2400

• Graphics card family
• Aspeed

• Integrated LAN
• Yes

• Intel® Virtualization Technology (Intel® VT)
• VT-d, VT-x

• Security features
• Power-on and administrator password

• Performance

• Noise level
• 6.5 dB

• Ports & interfaces

• DisplayPorts quantity
• 1

• Ethernet LAN (RJ-45) ports
• 4

• Serial ports quantity
• 1

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 2

• Power

• Number of main power supplies
• 1

• Power supply
• 750 W

• Redundant power supply (RPS) support
• Yes

• Processor

• Bus type
• QPI

• Conflict-Free processor
• No

• ECC supported by processor
• Yes

• Embedded options available
• No

• Execute Disable Bit
• Yes

• FSB Parity
• No

• Idle States
• Yes

• Maximum internal memory supported by processor
• 768 GB

• Maximum number of PCI Express lanes
• 40

• Maximum number of SMP processors
• 2

• Memory bandwidth supported by processor (max)
• 59 GB/s

• Memory channels supported by processor
• Quad

• Memory clock speeds supported by processor
• 1600,1866 MHz

• Memory types supported by processor
• DDR4-SDRAM

• Motherboard chipset
• Intel® C612

• Number of Cores
• 8

• Number of processors installed
• 1

• Number of QPI links
• 2

• PCI Express configurations
• x4, x8, x16

• Physical Address Extension (PAE)
• 46 bit
  Yes

• Processor
• E5-2630V3

• Processor boost frequency
• 3.2 GHz

• Processor cache
• 20 MB

• Processor cache type
• Smart Cache

• Processor code
• SR206

• Processor codename
• Haswell

• Processor family
• Intel Xeon E5 v3

• Processor frequency
• 2.4 GHz

• Processor lithography
• 22 nm

• Processor manufacturer
• Intel

• Processor operating modes
• 64-bit

• Processor package size
• 52.5 x 45 mm

• Processor series
• Intel Xeon E5-2600 v3

• Processor socket
• LGA 2011-v3

• Processor threads
• 16

• Scalability
• 2S

• Stepping
• R2

• Supported instruction sets
• AVX

• System bus rate
• 8 GT/s

• Tcase
• 72.1 °C

• Thermal Design Power (TDP)
• 85 W

• Thermal Monitoring Technologies
• Yes

• Processor special features

• CPU configuration (max)
• 2

• Enhanced Intel SpeedStep Technology
• Yes

• Intel 64
• Yes

• Intel Clear Video Technology
• No

• Intel Demand Based Switching
• Yes

• Intel Dual Display Capable Technology
• No

• Intel Enhanced Halt State
• Yes

• Intel Fast Memory Access
• No

• Intel FDI Technology
• No

• Intel Flex Memory Access
• No

• Intel Identity Protection Technology version
• 0.00

• Intel Rapid Storage Technology
• No

• Intel Secure Key Technology version
• 1.00

• Intel Trusted Execution Technology
• Yes

• Intel TSX-NI
• No

• Intel TSX-NI version
• 0.00

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Anti-Theft Technology (Intel® AT)
• No

• Intel® Built-in Visuals Technology
• Yes

• Intel® Clear Video HD Technology (Intel® CVT HD)
• No

• Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
• No

• Intel® Hyper Threading Technology (Intel® HT Technology)
• Yes

• Intel® Identity Protection Technology (Intel® IPT)
• No

• Intel® Insider™
• No

• Intel® InTru™ 3D Technology
• No

• Intel® My WiFi Technology (Intel® MWT)
• No

• Intel® OS Guard
• Yes

• Intel® Quick Sync Video Technology
• No

• Intel® Secure Key
• Yes

• Intel® Small Business Advantage (Intel® SBA)
• No

• Intel® Smart Cache
• Yes

• Intel® Smart Response Technology
• No

• Intel® Turbo Boost Technology
• 2.0

• Intel® Wireless Display (Intel® WiDi)
• No

• Processor ARK ID
• 83356

• Software

• Compatible operating systems
• - Microsoft Windows Server 2012 R2, 2012, 2008 R2, Windows Small Business Server 2011 - Red Hat Enterprise Linux 6.5, SUSE Linux Enterprise Server 11 - VMware vSphere (ESXi) 5.5 U2

• Storage

• HDD interface
• Serial ATA, Serial Attached SCSI (SAS)

• HDD size
• 2.5"

• Hot-swap
• Yes

• Maximum storage capacity
• 14.4 TB

• Number of HDDs supported
• 8

• Optical drive type
• No

• RAID levels
• 0, 1, 5, 6, 10, 50, 60

• RAID support
• Yes

• Technical details

• Number of 2.5" bays
• 8

• Weight & dimensions

• Depth
• 803 mm

• Height
• 43 mm

• Weight
• 13.5 kg

• Width
• 482 mm
