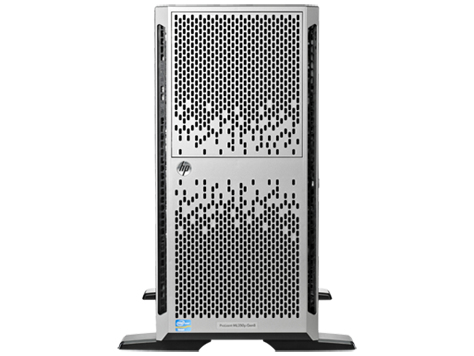

Name: Intel Xeon E5-2603 v2 (4 core, 1.8 GHz, 10MB, 80W), 8GB (1x8GB) RDIMM, 24 DIMM slots, 1R x4 PC3L-12800R-11, Ethernet x 4, mart Array P420i/512MB FBWC, 5U
Brand: HPE
SKU: 470065-849

Intel Xeon E5-2603 v2 (4 core, 1.8 GHz, 10MB, 80W), 8GB (1x8GB) RDIMM, 24 DIMM slots, 1R x4 PC3L-12800R-11, Ethernet x 4, mart Array P420i/512MB FBWC, 5U

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
HPE

Design

Chassis type
Tower (5U)

Expansion slots

PCI Express slots version
3.0

Filters

Machinecategory
Server

Memory

Internal memory type
DDR3-SDRAM

Memory clock speed
1866 MHz

Memory Installed
8 GB

Memory layout (slots x size)
1 x 8 GB

Memory Slot Support
768 GB

Memory slots
24x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Other features

Controller type
mart Array P420i/512MB FBWC

Graphics card
G200

Graphics card family
Matrox

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Serial ports quantity
1

USB 2.0 ports quantity
10

VGA (D-Sub) ports quantity
1

Power

Power supply
460 W

Processor

Bus type
QPI

Conflict-Free processor
No

ECC supported by processor
Yes

Embedded options available
No

Execute Disable Bit
Yes

Idle States
Yes

Maximum internal memory supported by processor
768 GB

Maximum number of PCI Express lanes
40

Memory bandwidth supported by processor (max)
42.6 GB/s

Memory channels supported by processor
Quad

Memory clock speeds supported by processor
800,1066,1333 MHz

Memory types supported by processor
DDR3-SDRAM

Number of Cores
4

Number of processors installed
1

Number of QPI links
2

PCI Express configurations
x4, x8, x16

Physical Address Extension (PAE)
46 bit

Processor
E5-2603V2

Processor cache
10 MB

Processor cache type
Smart Cache

Processor codename
Ivy Bridge EP

Processor family
Intel® Xeon® E5 Family

Processor frequency
1.8 GHz

Processor lithography
22 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
52.5 x 45 mm

Processor series
Intel Xeon E5-2600 v2

Processor socket
LGA 2011 (Socket R)

Processor threads
4

Scalability
2S

Supported instruction sets
AVX

System bus rate
6.4 GT/s

Tcase
71 °C

Thermal Design Power (TDP)
80 W

Thermal Monitoring Technologies
Yes

Processor special features

CPU configuration (max)
2

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Demand Based Switching
Yes

Intel Enhanced Halt State
Yes

Intel Flex Memory Access
No

Intel Identity Protection Technology version
0.00

Intel Secure Key Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel TSX-NI
No

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
No

Intel® Identity Protection Technology (Intel® IPT)
No

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
No

Processor ARK ID
76157

Software

Operating system installed
Unix

Storage

Number of HDDs supported
8

Optical drive type
DVD-RW

Weight & dimensions

Depth
740 mm

Height
462 mm

Weight
30.4 kg

Width
218 mm

Memory

Internal memory type
DDR3-SDRAM

Memory clock speed
1866 MHz

Memory Installed
8 GB

Memory Slot Support
768 GB

Memory slots
24x DIMM

Processor

Processor
E5-2603V2
