• Certificates

• Certification
• TÜV GS, CE, FCC Class B cCSAus, WEEE, CCC, CEL

• Design

• Cable lock slot
• Yes

• Cable lock slot type
• Kensington

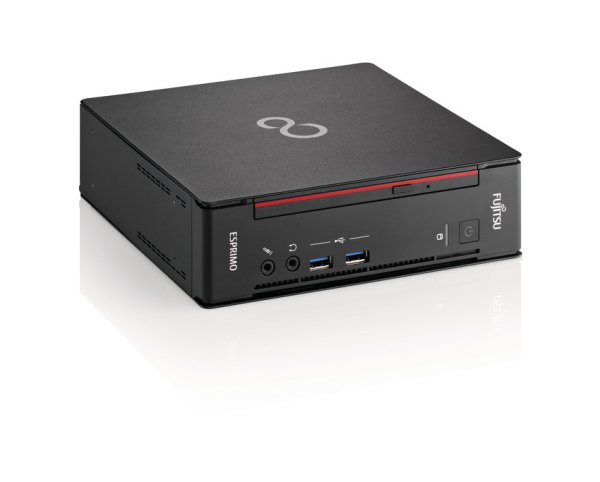

• Chassis type
• mini PC

• Number of 5.25" bays
• 1

• Placement supported
• Horizontal/Vertical

• Product colour
• Black, Red

• VESA mounting
• Yes

• Volume
• 2 L

• Filters

• Machinecategory
• Personal computer

• Graphics

• Discrete graphics card
• No

• Discrete graphics card model
• Not available

• Graphics card Open GL support
• Yes

• Maximum on-board graphics card memory
• 64 GB

• Number of displays supported (on-board graphics)
• 3

• On-board graphics card
• Yes

• On-board graphics card base frequency
• 350 MHz

• On-board graphics card DirectX version
• 12.0

• On-board graphics card dynamic frequency (max)
• 1150 MHz

• On-board graphics card family
• Intel® HD Graphics

• On-board graphics card ID
• 5912

• On-board graphics card model
• Intel® HD Graphics 630

• On-board graphics card OpenGL version
• 4.4

• Memory

• Internal memory type
• DDR4-SDRAM

• Memory channels
• Dual-channel

• Memory clock speed
• 2400 MHz

• Memory Slot Support
• 32 GB

• Memory slots
• 2x DIMM

• Non-ECC
• Yes

• Network

• Bluetooth
• Yes

• Bluetooth version
• 4.1

• Cabling technology
• 10/100/1000Base-T(X)

• Ethernet LAN
• Yes

• Ethernet LAN data rates
• 10,100,1000 Mbit/s

• Top Wi-Fi standard
• Wi-Fi 5 (802.11ac)

• Wake-on-LAN ready
• Yes

• Wi-Fi
• Yes

• Wi-Fi standards
• Wi-Fi 5 (802.11ac)

• Operational conditions

• Operating relative humidity (H-H)
• 5 - 85%

• Operating temperature (T-T)
• 10 - 35 °C

• Other features

• Remote power connector type
• Euroblock

• Packaging content

• AC adapter included
• Yes

• Manual
• Yes

• Power cord included
• Yes

• Performance

• Audio chip
• Realtek ALC671

• Audio output channels
• 5.1 channels

• Audio system
• High Definition Audio

• BIOS type
• UEFI AMI

• Market positioning
• Business

• Motherboard chipset
• Intel® H110

• Password protection
• Yes

• Password protection type
• BIOS, HDD, Supervisor, User

• Product type
• Mini PC

• Trusted Platform Module (TPM)
• Yes

• Ports & interfaces

• DC-in jack
• Yes

• DisplayPorts quantity
• 1

• DVI port
• Yes

• Ethernet LAN (RJ-45) ports
• 1

• Headphone outputs
• 1

• Line-in
• Yes

• Line-out
• Yes

• Microphone in
• Yes

• PS/2 ports quantity
• 1

• Serial ports quantity
• 1

• Total number of SATA connectors
• 2

• USB 2.0 ports quantity
• 2

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 4

• Power

• Power supply
• 65 W

• Power supply input frequency
• 50 - 60 Hz

• Power supply input voltage
• 100 - 240 V

• Processor

• Bus type
• DMI3

• Configurable TDP-down
• 25 W

• Configurable TDP-down frequency
• 1.9 GHz

• ECC supported by processor
• No

• Maximum internal memory supported by processor
• 64 GB

• Maximum number of PCI Express lanes
• 16

• Memory clock speeds supported by processor
• 1333,1600,2133,2400 MHz

• Memory types supported by processor
• DDR3L-SDRAM, DDR4-SDRAM

• Memory voltage supported by processor
• 1.35 V

• Number of Cores
• 4

• Number of processors installed
• 1

• PCI Express configurations
• 1x16, 1x8+2x4, 2x8

• PCI Express slots version
• 3.0

• Processor
• i7-7700T

• Processor boost frequency
• 3.8 GHz

• Processor cache
• 8 MB

• Processor cache type
• Smart Cache

• Processor codename
• Kaby Lake

• Processor family
• Intel® Core™ i7

• Processor frequency
• 2.9 GHz

• Processor generation
• 7th gen Intel® Core™ i7

• Processor lithography
• 14 nm

• Processor manufacturer
• Intel

• Processor operating modes
• 64-bit

• Processor series
• Intel Core i7-7700 Desktop series

• Processor socket
• LGA 1151 (Socket H4)

• Processor threads
• 8

• Stepping
• B0

• System bus rate
• 8 GT/s

• Thermal Design Power (TDP)
• 35 W

• Tjunction
• 80 °C

• Processor special features

• Conflict-Free processor
• Yes

• CPU configuration (max)
• 1

• Embedded options available
• Yes

• Enhanced Intel SpeedStep Technology
• Yes

• Execute Disable Bit
• Yes

• Idle States
• Yes

• Intel 64
• Yes

• Intel Clear Video Technology
• Yes

• Intel Enhanced Halt State
• Yes

• Intel Identity Protection Technology version
• 1.00

• Intel Secure Key Technology version
• 1.00

• Intel Software Guard Extensions (Intel SGX)
• Yes

• Intel Stable Image Platform Program (SIPP)
• Yes

• Intel Stable Image Platform Program (SIPP) version
• 1.00

• Intel Trusted Execution Technology
• Yes

• Intel TSX-NI
• Yes

• Intel TSX-NI version
• 1.00

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Clear Video HD Technology (Intel® CVT HD)
• Yes

• Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
• Yes

• Intel® Hyper Threading Technology (Intel® HT Technology)
• Yes

• Intel® Identity Protection Technology (Intel® IPT)
• Yes

• Intel® InTru™ 3D Technology
• Yes

• Intel® OS Guard
• Yes

• Intel® Quick Sync Video Technology
• Yes

• Intel® Secure Key
• Yes

• Intel® Turbo Boost Technology
• 2.0

• Processor ARK ID
• 97122

• Processor code
• SR339

• Processor package size
• 37.5 x 37.5 mm

• Scalability
• 1S

• Supported instruction sets
• AVX 2.0, SSE4.1, SSE4.2

• Thermal Monitoring Technologies
• Yes

• Thermal solution specification
• PCG 2015A

• Software

• Drivers included
• Yes

• Pre-installed software
• Adobe Reader, McAfee Multi Access Security, Microsoft Office

• Sustainability

• Sustainability certificates
• Blue Angel, RoHS, EPEAT Gold, ENERGY STAR

• Weight & dimensions

• Depth
• 190 mm

• Height
• 54 mm

• Package depth
• 198 mm

• Package height
• 284 mm

• Package width
• 395 mm

• Weight
• 1.6 kg

• Width
• 185 mm
