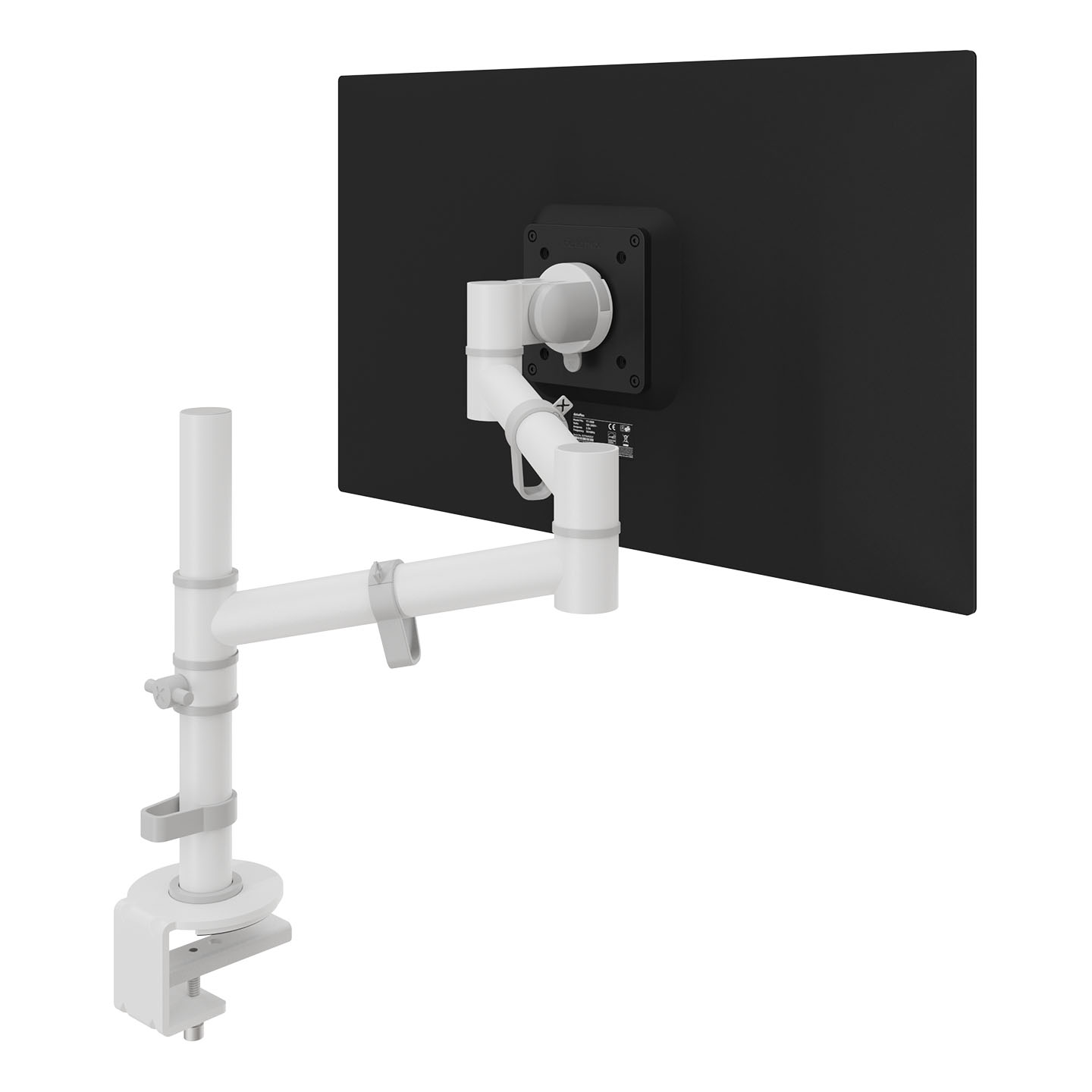

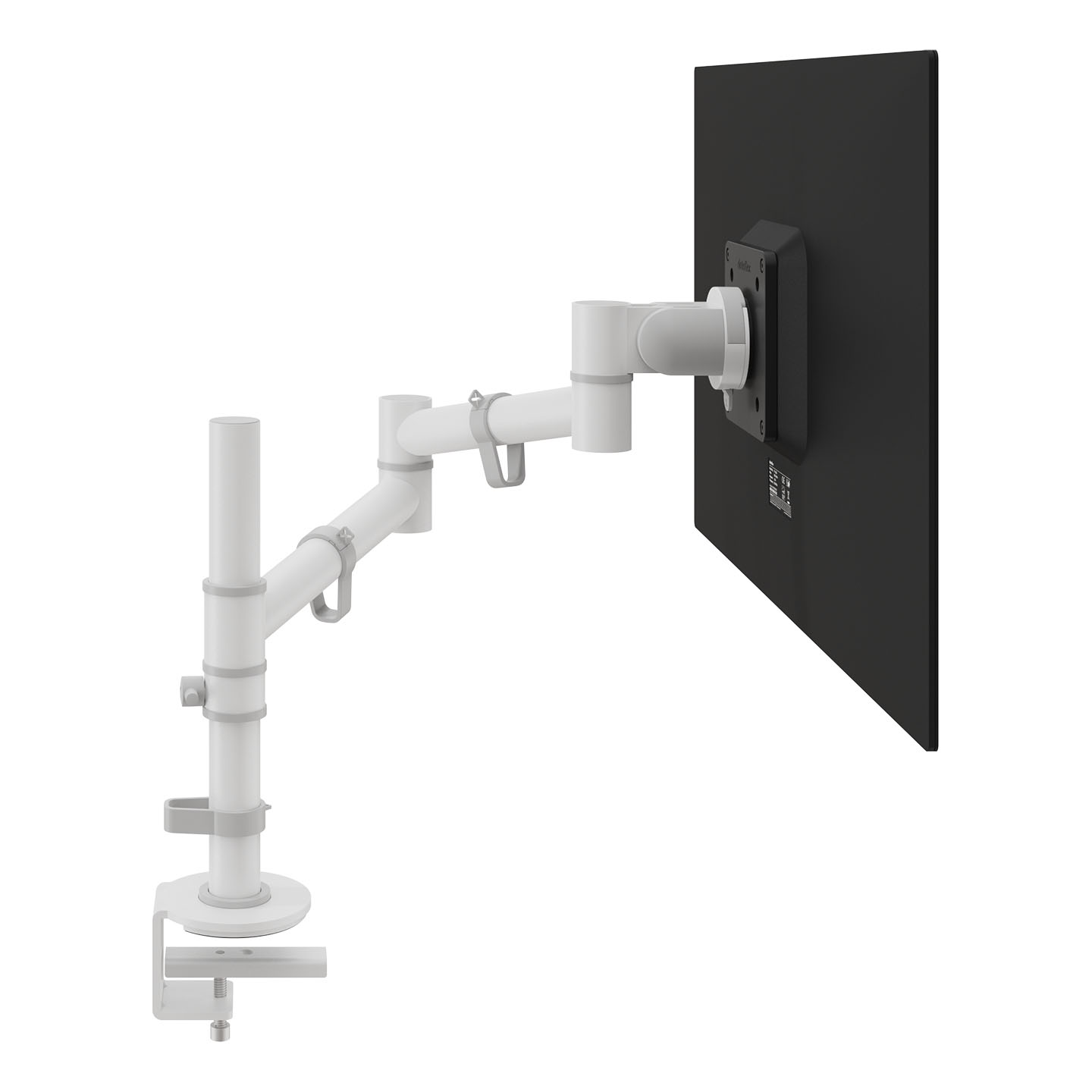

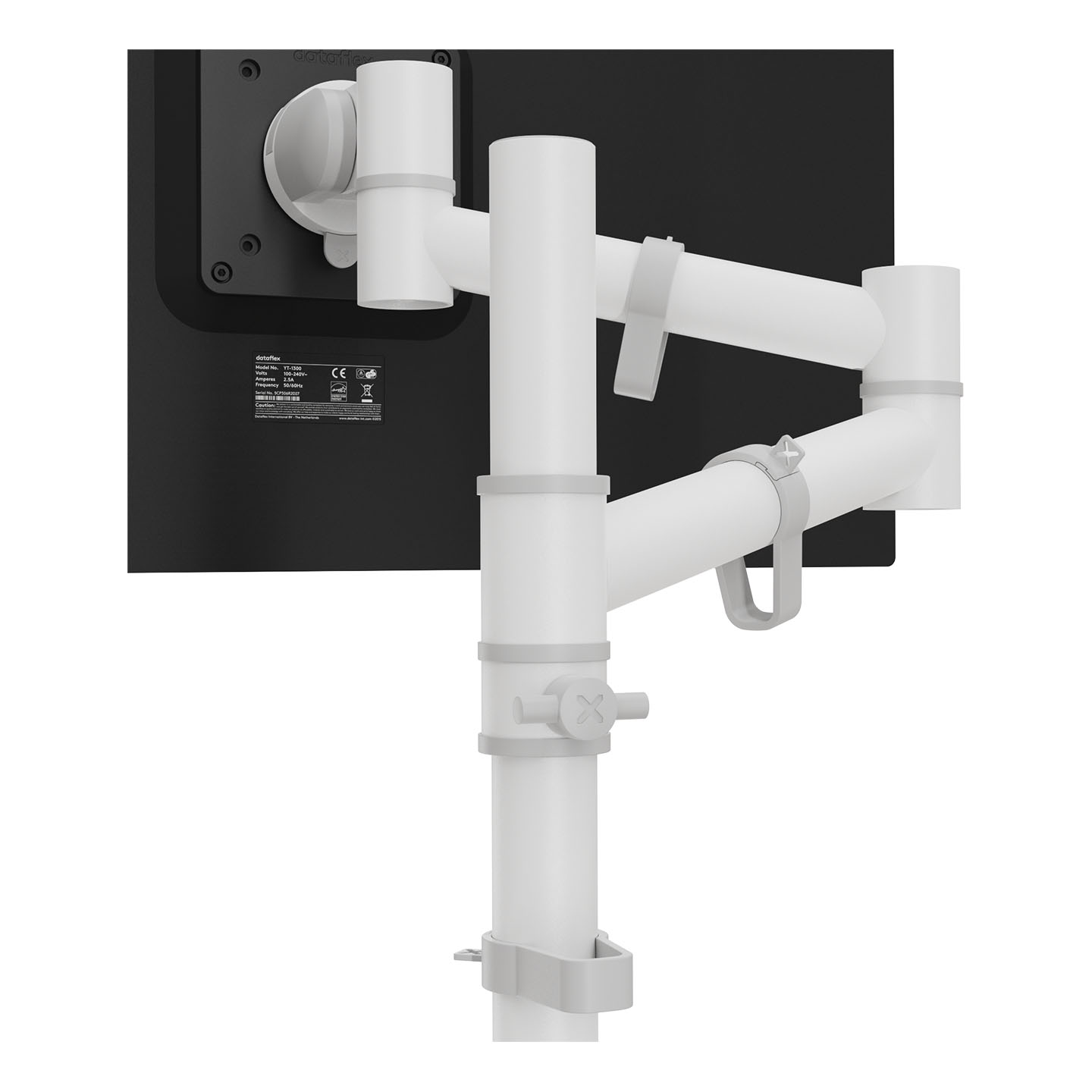

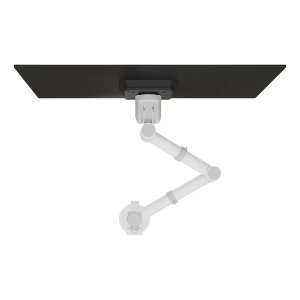

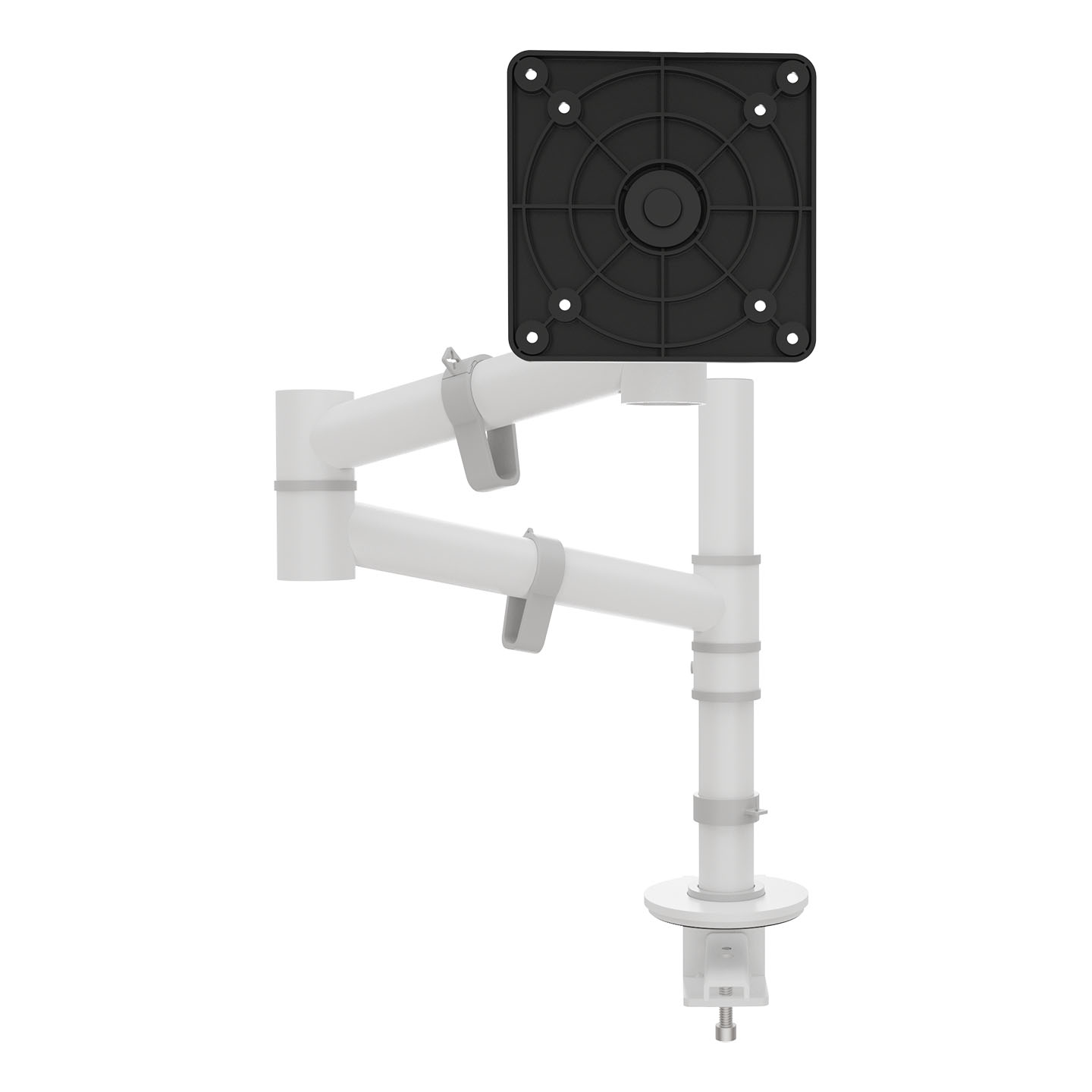

Dataflex Viewgo monitor arm - desk 120

Name: Dataflex Viewgo monitor arm - desk 120
Brand: Dataflex
SKU: 48.120

SKU: 48.120

6 In Stock

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	6	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

Dataflex Viewgo monitor arm - desk 120, Clamp/Bolt-through, 8 kg, 68.6 cm (27"), 100 x 100 mm, Height adjustment, White

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
1 Year

SKU
48.120

EAN
805410481209

Bullet points

Design

Easy to install
Yes

Housing material
Foam, Steel

Non-slip surface
Yes

Product colour
White

Ergonomics

Adjustable depth
Yes

Angle of rotation
360°

Cable management
Yes

Height adjustment
Yes

Number of pivot points
3

Swivel angle
360°

Tilt angle range
-50 - 90°

Turn angle
180°

Logistics data

Harmonized System (HS) code
85299097

Mounting

Desk thickness (max)
6 cm

Desk thickness (min)
5 mm

Maximum screen size
68.6 cm (27")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
8 kg

Minimum VESA mount
75 x 75 mm

Monitor height (max)
90 cm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
1

Panel mounting interface
75 x 75,100 x 100 mm

Packaging content

Clamp included
Yes

Technical details

Height adjustment
21 cm

Weight & dimensions

Package depth
182 mm

Package height
155 mm

Package weight
3.3 kg

Package width
615 mm

Description

Dataflex Viewgo monitor arm - desk 120. Mounting: Clamp/Bolt-through, Maximum weight capacity: 8 kg, Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -50 - 90°. Product colour: White

Maximum weight capacity: 8 kg
Maximum screen size: 68.6 cm (27")
Number of displays supported: 1
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Height adjustment
Cable management Easy to install
Foam, Steel White
Static height adjustment range of 210 mm (8,3")
Independent depth adjustment
Fitted with cable clips to guide cables tidily
Main components made of steel
VESA MIS-D 75 x 75/100 x 100 mm compatible
Monitor: tilt +90°/-50°, swivel +90°/-90°, rotate 360°
Arm: swivel 360°
Weight capacity max. 8 kg (17,6 lb) per monitor
Comes with a desk clamp mount and bolt-through desk mount
Suitable for desktop thicknesses of 5 up to 40 mm (0,2" - 1,6") (clamp) or 60 mm (2,4") (bolt through)
Monitor size limit: height 900 mm (35,4")
Simple height adjustment using a tightening knob
Installs firmly on any surface without a scratch thanks to protective non-slip foam layer
Hassle-free installation using just one supplied tool
