C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz

Roll over image to zoom inClick to Open expanded view

C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz

Name: C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz
Brand: C2G
SKU: C2G30014

SKU: C2G30014

ETA 3 days

C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz, 3840 x 2160 pixels, AV transmitter, 40 m, Black, HDCP

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
C2G

Warranty
5 Years

SKU
C2G30014

EAN
757120300144

Bullet points

Point
Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units

DBaseT Chipset VS210, for simpler HDBaseT installations

Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable

Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable

HDCP 2.2 compliant, to create a secure connection between the source and display

Supports bi-directional IR and RS232 pass-through

Features

Bandwidth
10.2 Gbit/s

Cable types supported
Cat5e, Cat6, Cat6a

Chipset
VS010 Type

HDCP
Yes

HDCP version
2.2

Maximum refresh rate
60 Hz

Maximum resolution
3840 x 2160 pixels

Maximum transfer distance
40 m

Product colour
Black

Type
AV transmitter

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage temperature (T-T)
-20 - 70 °C

Packaging data

Quantity per pack
1 pc(s)

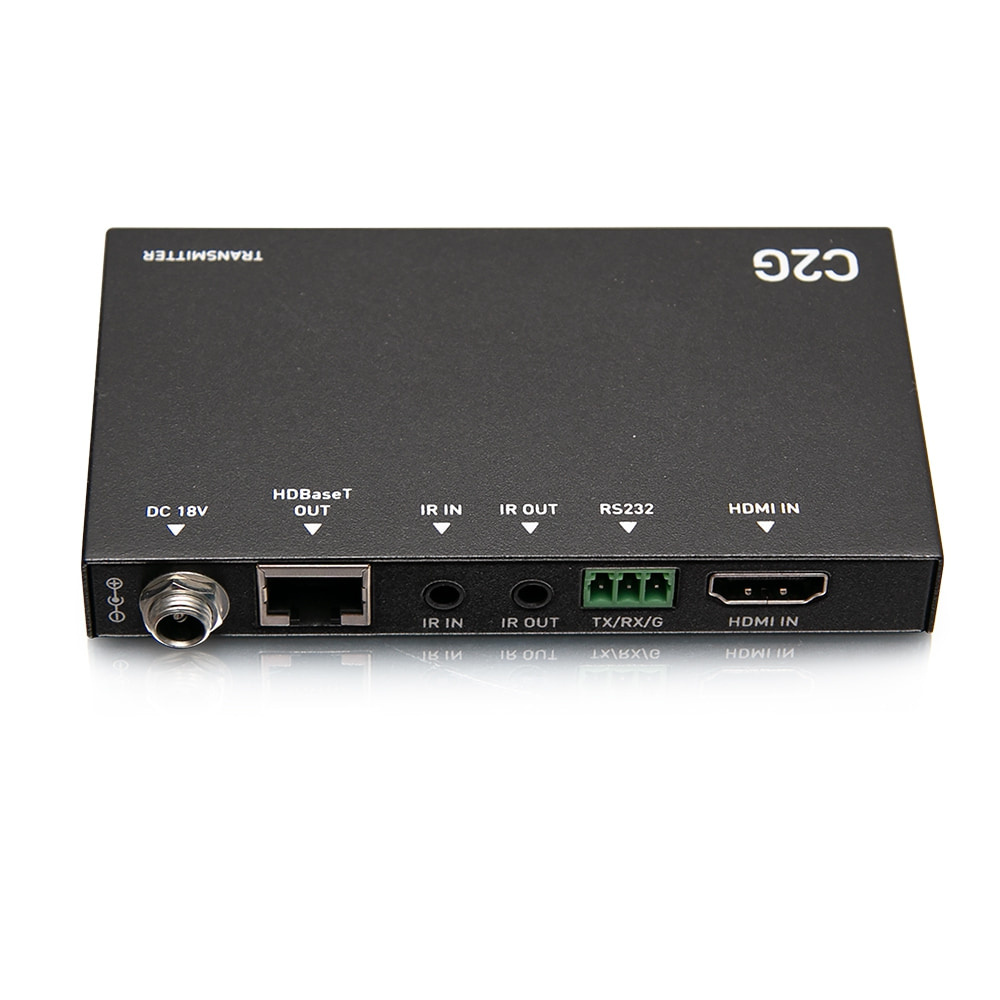

Ports & interfaces

DC-in jack
Yes

HDMI version
1.4

Number of HDMI outputs
2

Remote (IR) input
1

Remote (IR) output
1

Power

Operating voltage
18 V

Output current
1 A

Power consumption (max)
8.88 W

Power source type
DC

Weight & dimensions

Depth
64.2 mm

Height
15 mm

Weight
180 g

Width
108.8 mm

Description

C2G HDMI® Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz. Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Power source type: DC, Operating voltage: 18 V, Output current: 1 A. Width: 108.8 mm, Depth: 64.2 mm, Height: 15 mm. Quantity per pack: 1 pc(s)

AV transmitter 3840 x 2160 pixels Black
Maximum transfer distance: 40 m
60 Hz
HDCP
DC-in jack
Power source type: DC
Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
HDCP 2.2 compliant, to create a secure connection between the source and display
Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units
Supports bi-directional IR and RS232 pass-through
DBaseT Chipset VS210, for simpler HDBaseT installations
