C2G HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz

Roll over image to zoom inClick to Open expanded view

C2G HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz

Name: C2G HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz
Brand: C2G
SKU: C2G30010

SKU: C2G30010

ETA 3 days

C2G HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz, 3840 x 2160 pixels, AV transmitter & receiver, 39.62 m, Black, HDCP

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
C2G

Warranty
5 Years

SKU
C2G30010

EAN
757120300106

Bullet points

Point
Bi-directional PoC, when either transmitter or receiver is plugged into power

Extend 4K at 60Hz (4:2:0) up to 35m and 1080p at 60Hz up to 60m with Cat 5e/6 cable

Extend 4K at 60Hz (4:2:0) up to 40m and 1080p at 60Hz up to 70m with Cat 6a cable

Extend 4K HDMI up to 40m over a single Cat6a network patch cable using HDBaseT technology

HDCP 2.2 compliant, to create a secure connection between the source and display

Features

Bidirectional
Yes

Cable types supported
Cat5e, Cat6a, Cat7

HDCP
Yes

Material
SGCC

Maximum refresh rate
60 Hz

Maximum resolution
3840 x 2160 pixels

Maximum transfer distance
39.62 m

Product colour
Black

Type
AV transmitter & receiver

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

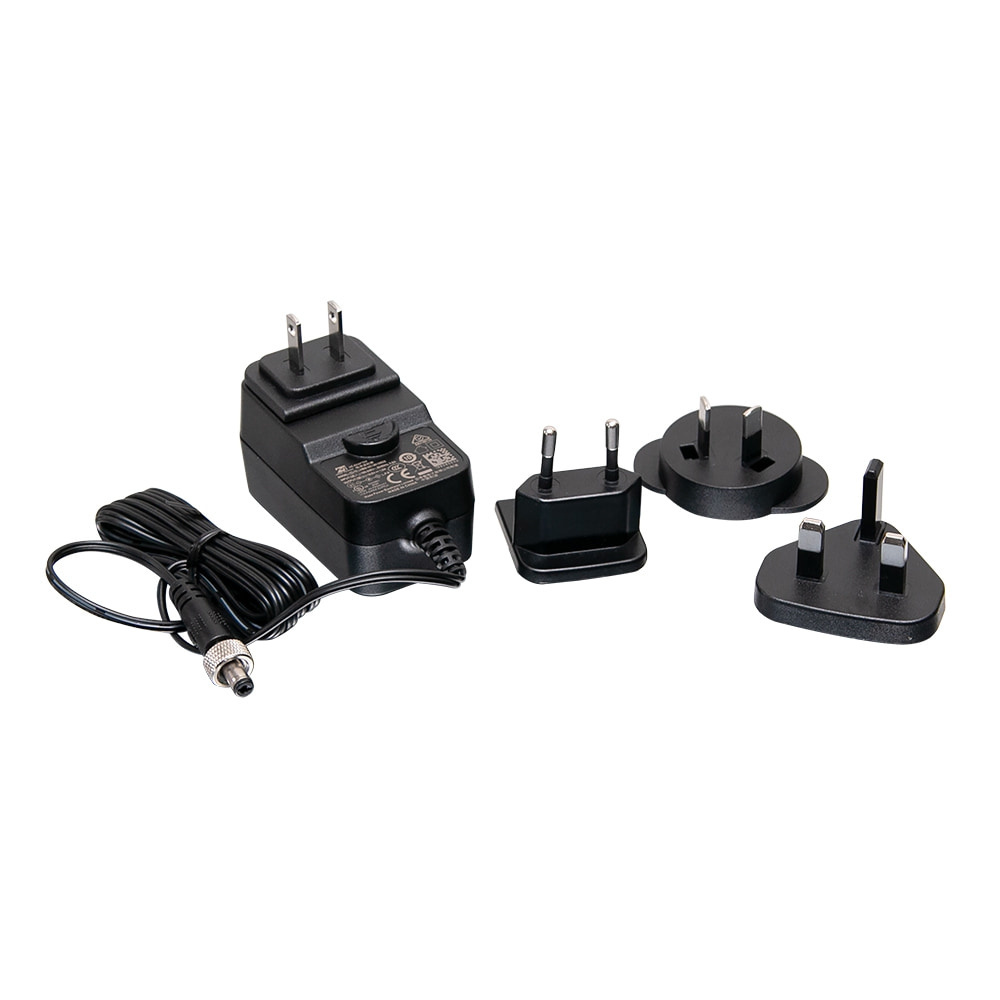

AC adapter included
Yes

Mounting kit
Yes

Packaging data

Quantity per pack
1 pc(s)

Ports & interfaces

DC-in jack
Yes

Ethernet LAN
Yes

HDMI in
1

Number of HDMI outputs
1

RJ-45 input ports
1

RJ-45 output ports
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
0.6 A

Operating voltage
18 V

Output current
1 A

Weight & dimensions

Weight
630 g

Description

C2G HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6a, Cat7. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 18 V. Weight: 630 g. Quantity per pack: 1 pc(s)

AV transmitter & receiver 3840 x 2160 pixels Black
Maximum transfer distance: 39.62 m
60 Hz
HDCP
Ethernet LAN DC-in jack
Extend 4K HDMI up to 40m over a single Cat6a network patch cable using HDBaseT technology
Extend 4K at 60Hz (4:2:0) up to 40m and 1080p at 60Hz up to 70m with Cat 6a cable
Extend 4K at 60Hz (4:2:0) up to 35m and 1080p at 60Hz up to 60m with Cat 5e/6 cable
HDCP 2.2 compliant, to create a secure connection between the source and display
Bi-directional PoC, when either transmitter or receiver is plugged into power
