Name: BladeCenter HX5 Scalable 2 Socket Server, 2 x Intel Xeon E7-2830, 12 x 16GB DDR3 1066MHz, 2 x 200GB SATA SSD, SSD Expansion Card, Dual Gigabit Ethernet + Broadcom 2-port 10Gb Virtual Fabric Adapter + QLogic 8Gb Fibre Channel Expansion Card
Brand: IBM
SKU: 7873ALG

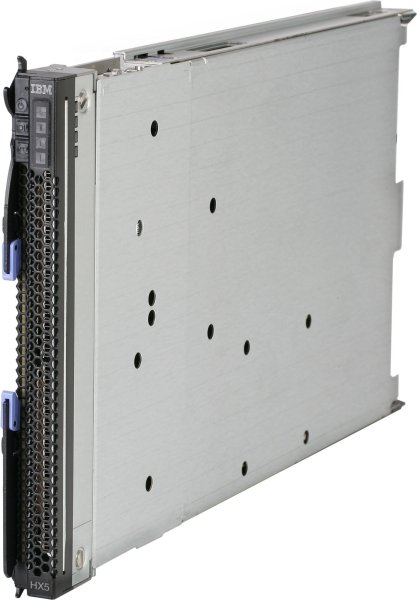

IBM BladeCenter HX5 7873 server 400 GB Blade Intel® Xeon® E7 Family E7-2830 2.13 GHz 192 GB DDR3L-SDRAM

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
IBM

Device type
Server

Design

Chassis type
Blade

Features

Images Type Map

Filters

Machinecategory
Server

Graphics

On-board graphics card
Yes

Memory

Internal memory type
DDR3L-SDRAM

Memory clock speed
1066 MHz

Memory Installed
192 GB

Memory Slot Support
512 GB

Memory slots
16

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Broadcom BCM5709S

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 2133 m

Operating relative humidity (H-H)
8 - 80%

Operating temperature (T-T)
10 - 35 °C

Other features

Fibre Channel
Yes

Graphics card
G200e

Graphics card family
Matrox

Performance

Trusted Platform Module (TPM)
Yes

Trusted Platform Module (TPM) version
1.2

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

VGA (D-Sub) ports quantity
1

Processor

Bus type
QPI

Conflict-Free processor
No

CPU multiplier (bus/core ratio)
16

ECC supported by processor
Yes

Embedded options available
No

Execute Disable Bit
Yes

FSB Parity
No

Maximum internal memory supported by processor
1.02 TB

Maximum number of SMP processors
2

Memory channels supported by processor
Quad

Memory clock speeds supported by processor
800,978,1066,1333 MHz

Memory types supported by processor
DDR3-SDRAM

Number of Cores
8

Number of processors installed
2

Processor
E7-2830

Processor boost frequency
2.4 GHz

Processor cache
24 MB

Processor cache type
Smart Cache

Processor code
SLC3J

Processor codename
Westmere EX

Processor family
Intel® Xeon® E7 Family

Processor frequency
2.13 GHz

Processor lithography
32 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
49.17 x 56.47 mm

Processor series
Intel Xeon E7-2800

Processor socket
LGA 1567 (Socket LS)

Processor threads
16

Scalability
S2S

Stepping
A2

Supported instruction sets
SSE4.1, SSE4.2

System bus rate
6.4 GT/s

Tcase
64 °C

Thermal Design Power (TDP)
105 W

Thermal Monitoring Technologies
Yes

Processor special features

CPU configuration (max)
2

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Clear Video Technology
No

Intel Demand Based Switching
No

Intel Dual Display Capable Technology
No

Intel Enhanced Halt State
No

Intel Fast Memory Access
No

Intel FDI Technology
No

Intel Flex Memory Access
No

Intel Rapid Storage Technology
No

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Anti-Theft Technology (Intel® AT)
No

Intel® Clear Video HD Technology (Intel® CVT HD)
No

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Insider™
No

Intel® InTru™ 3D Technology
No

Intel® My WiFi Technology (Intel® MWT)
No

Intel® Quick Sync Video Technology
No

Intel® Turbo Boost Technology
1.0

Intel® Wireless Display (Intel® WiDi)
No

Processor ARK ID
53674

Software

Compatible operating systems
Microsoft Windows, Red Hat Linux, SUSE Linux, VMware

Operating system installed
No

Storage

Hot-swap
No

Maximum storage capacity
0.8 TB

Number of SSDs installed
2

Number of SSDs supported
2

Optical drive type
No

SSD capacity
200 GB

SSD interface
SATA

Storage Capacity
400 GB

Supported HDD sizes
1.8"

Supported storage drive interfaces
Serial ATA

Weight & dimensions

Depth
446 mm

Height
245 mm

Width
30 mm

Memory

Internal memory type
DDR3L-SDRAM

Memory clock speed
1066 MHz

Memory Installed
192 GB

Memory Slot Support
512 GB

Memory slots
16

Processor

Processor
E7-2830
